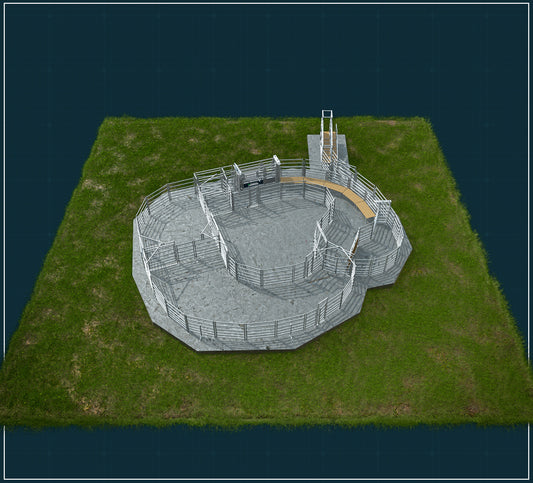

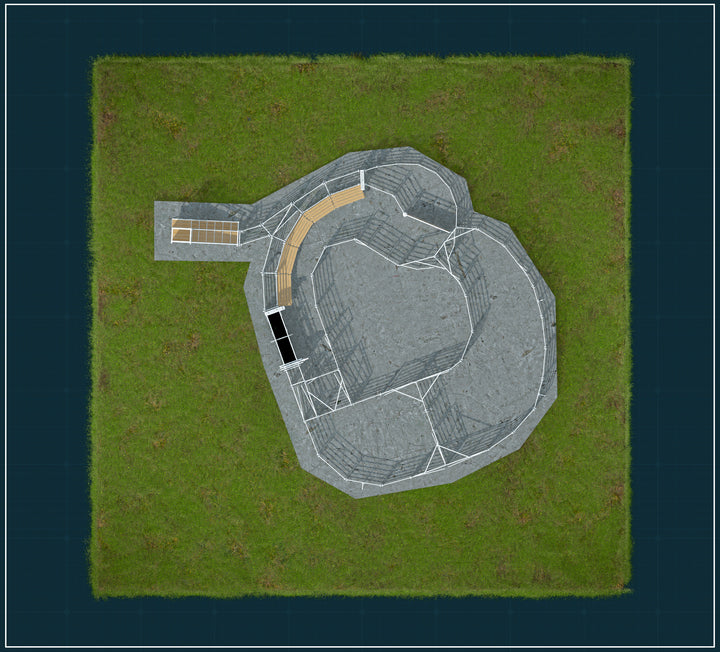

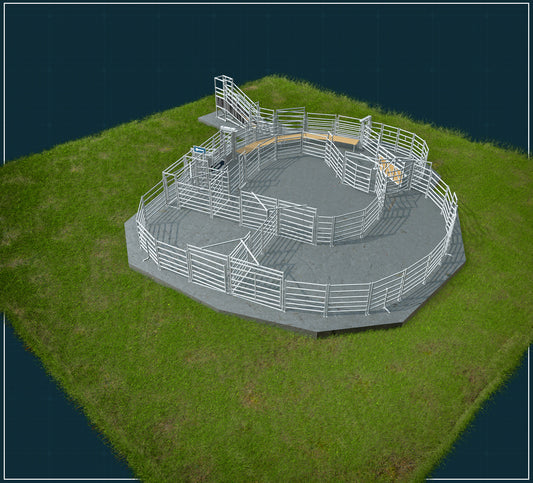

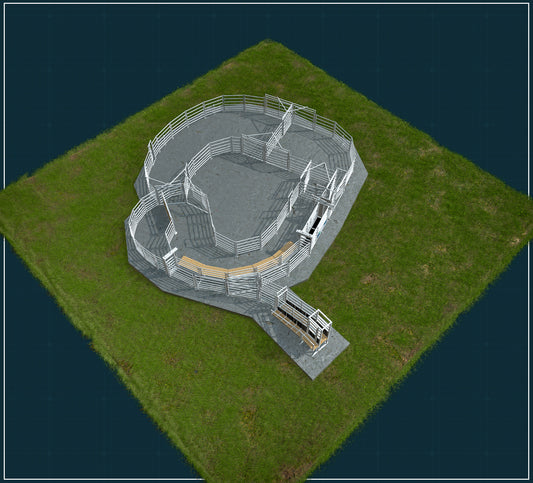

120 Head Yard

Yard Dimensions

‍

When it comes to scoping a particular design on a confined site, overall yard dimensions are helpful to understand the overall footprint of a design.

‍

Onefarm can provide more dimensions where required to aid with deciding on a design.

‍

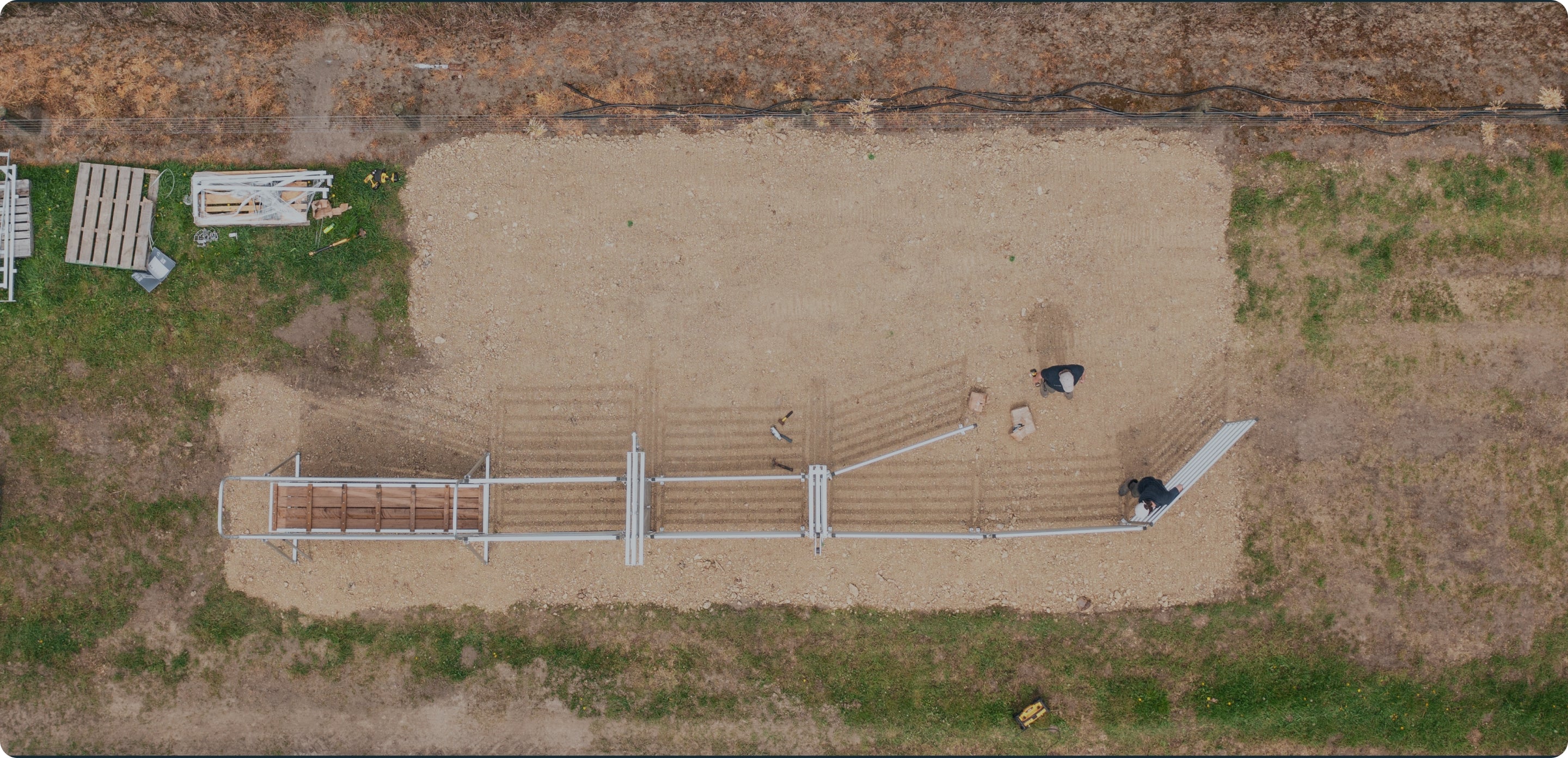

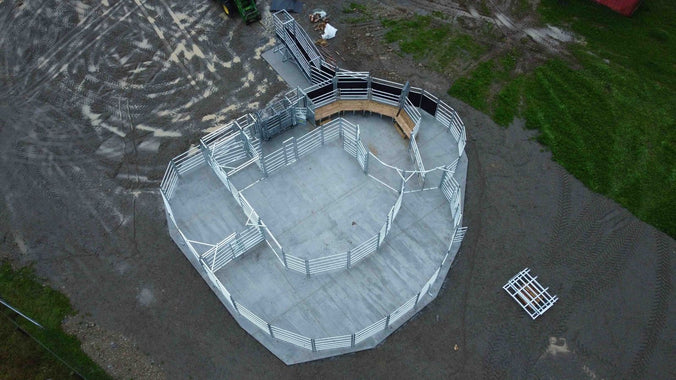

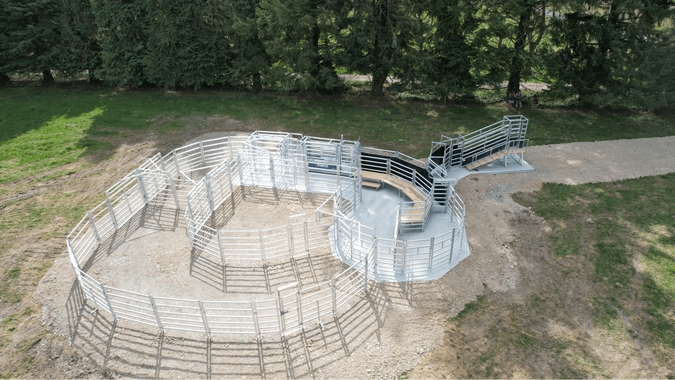

For larger Commercial Yards, a site visit is recommended. Using a drone, we take an aerial shot of your site for our design team to superimpose different yard designs to scale.

Including Loading Ramp Area - 19.5m x 18m

Excluding Loading Ramp Area - 16.1m x 18m

‍

Yard Capacity

‍

When contemplating yard capacity, it is crucial to contemplate Holding Capacity and Working Capacity separately.

‍

It's comparable to a kitchen where eight people can stand, but only two people can work efficiently.

‍

If there were eight people standing in the kitchen, no one would be able to work.

‍

The same principle applies to cattle in yards. When handling cattle, they require ample space for turning and movement.

Based on your average adult cattle (450kg), we use 1.5m2 per head for Holding Capacity, or 2.2m2 as a guide for working capacity. This differs based on whether you're running Cows & Calves, Calves alone, Bulls etc.

Holding Capacity - 120

‍

Working Capacity - 81

‍

Surface Area

‍

For the purpose of obtaining quotes for site preparation, metal, and concrete costs, see below surface area of this design. 'Working Area' refers to the Force Pen, Non-Stock Area and Race.

Working Area - 107m2

‍

Full Pad - 284m2

‍

The Onefarm Warranty

‍

At Onefarm, we take pride in offering comprehensive warranties in three distinct areas: Hot Dipped Galvanising, Structural Integrity, and Rail Bend. We understand the importance of providing our customers with peace of mind, and that's why we stand behind the quality of our products.

‍

For all Hot Dipped Galvanising, we offer an impressive 10-year warranty. This guarantee ensures that your investment is protected for the long haul, giving you confidence in the durability and corrosion resistance of our materials.

‍

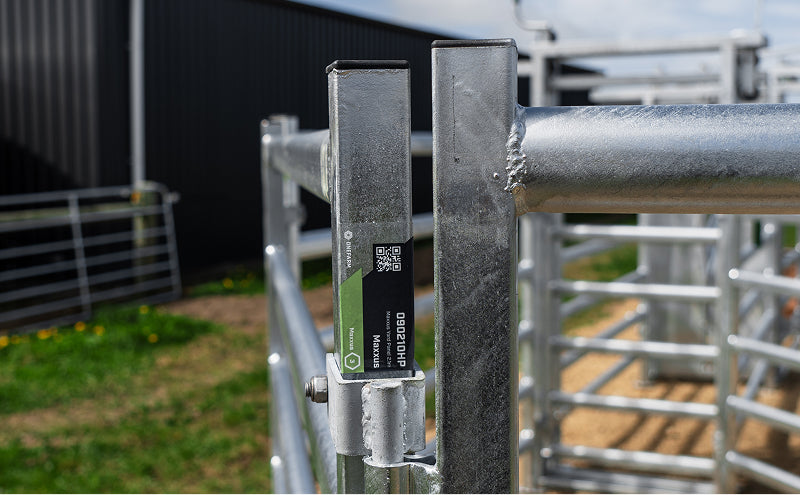

In addition, our Commercial Steel products come with a generous 2-year warranty. We believe in the strength and reliability of our steel, and we want you to have the utmost confidence in your purchase.

‍

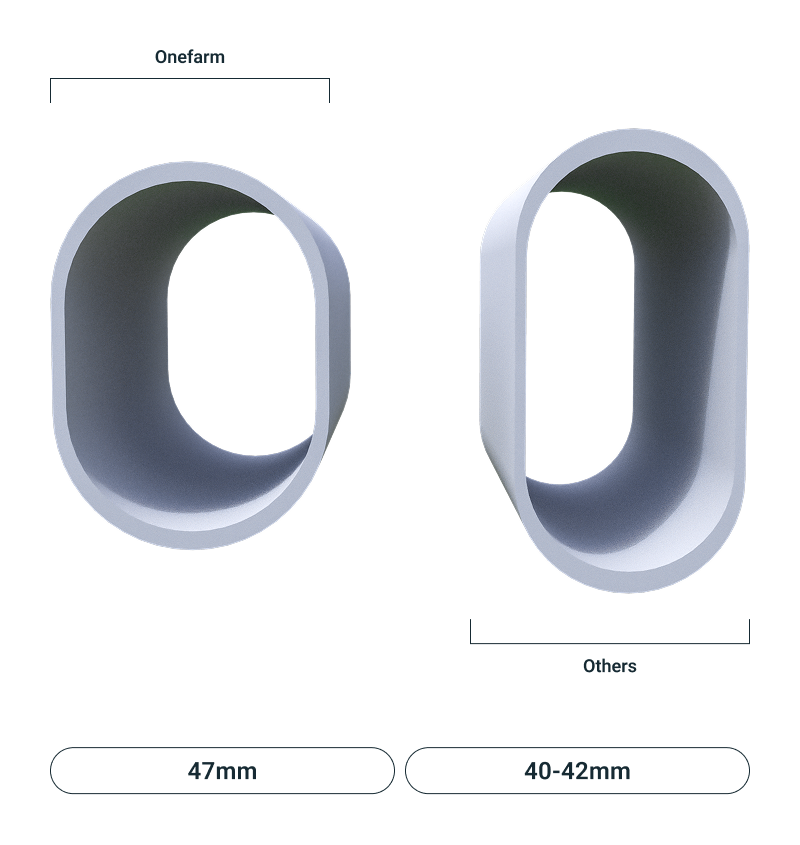

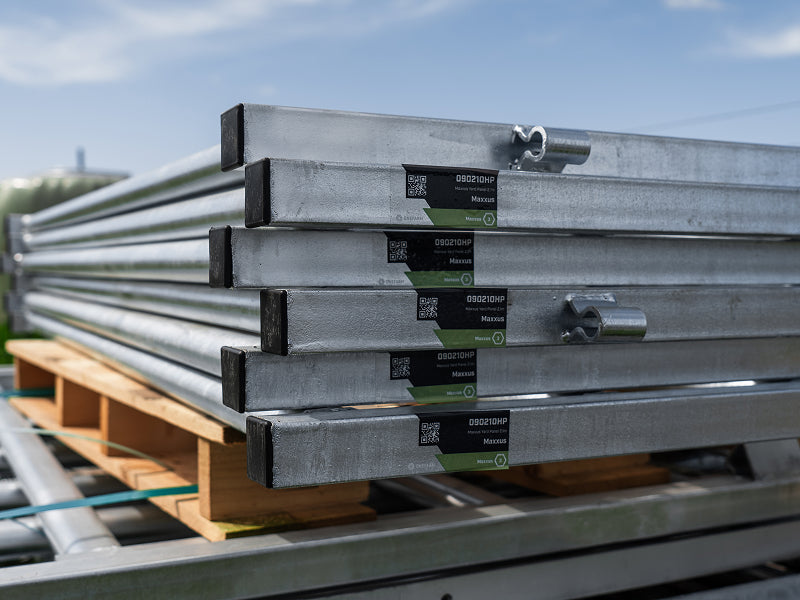

Lastly, we proudly offer a unique 'You bend it, we replace it' warranty for all rails bent due to sideways movement. We utilize a robust rail profile and employ thicker steel than our competitors, emphasizing our commitment to exceptional rail strength. This warranty demonstrates our unwavering confidence in the durability of our rails and serves as a testament to our dedication to customer satisfaction.

‍

Choose Onefarm for unmatched quality, superior durability, and the assurance of our industry-leading warranties. Invest in products you can rely on, backed by a company that stands behind its promises.

‍

‍
