NOW $8,099.00

+ GST

Was $8,999.00
Operating Side
ENQUIRE NOW
Is the Gryphon right for you?

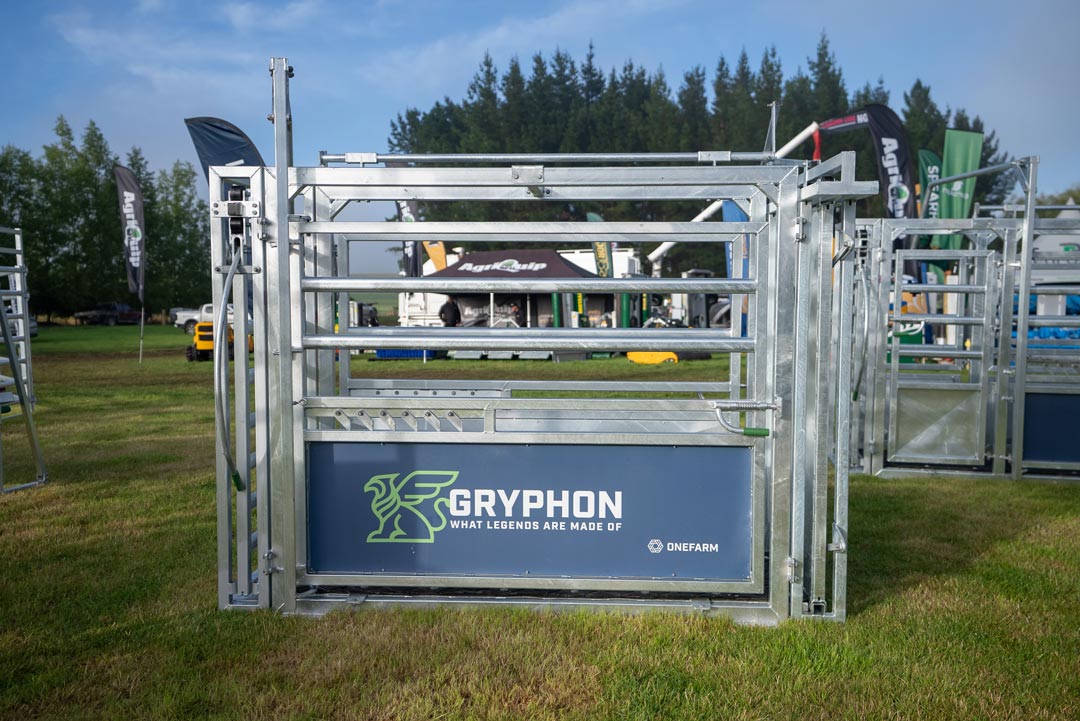

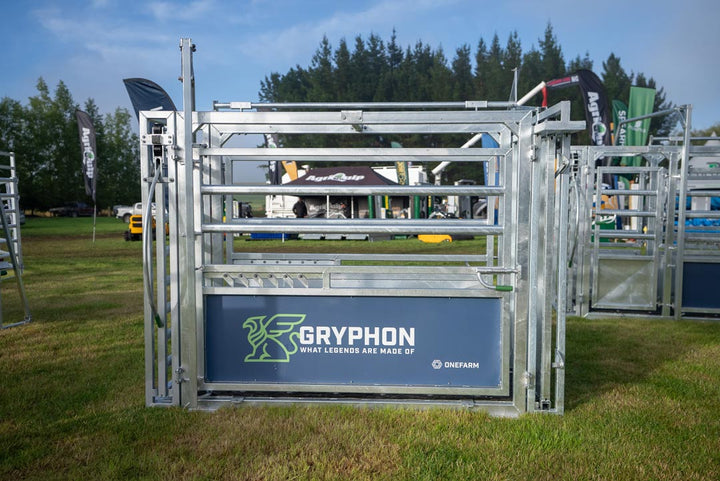

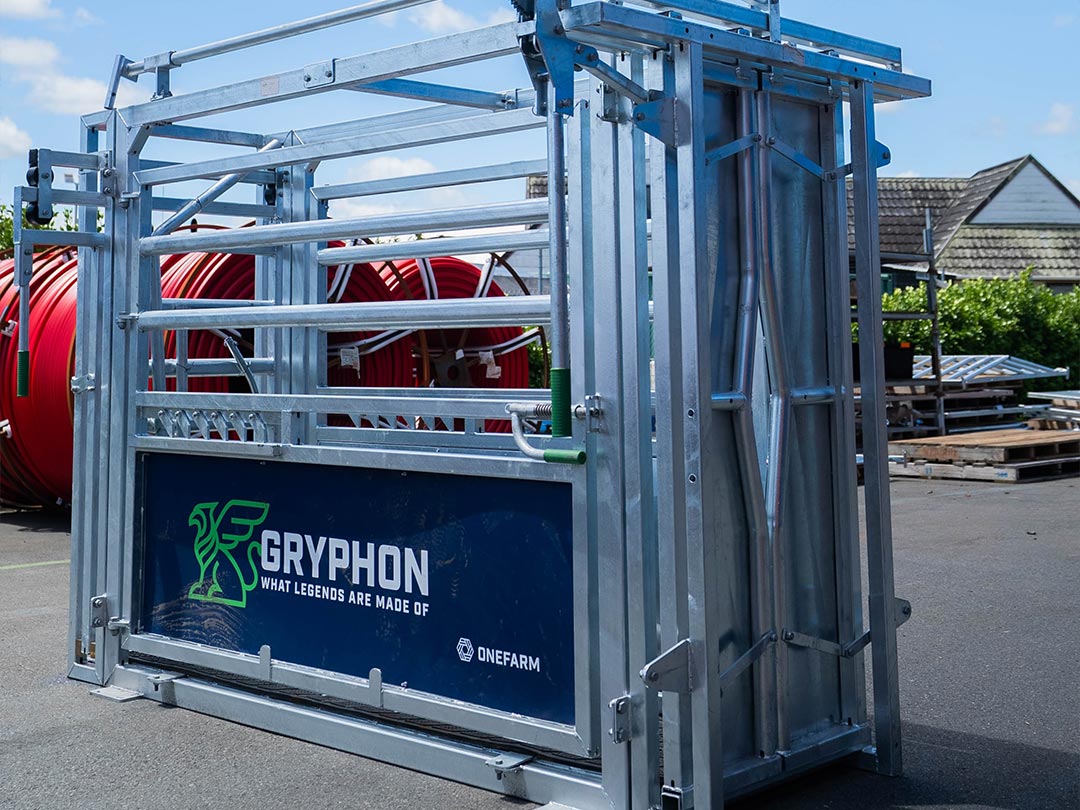

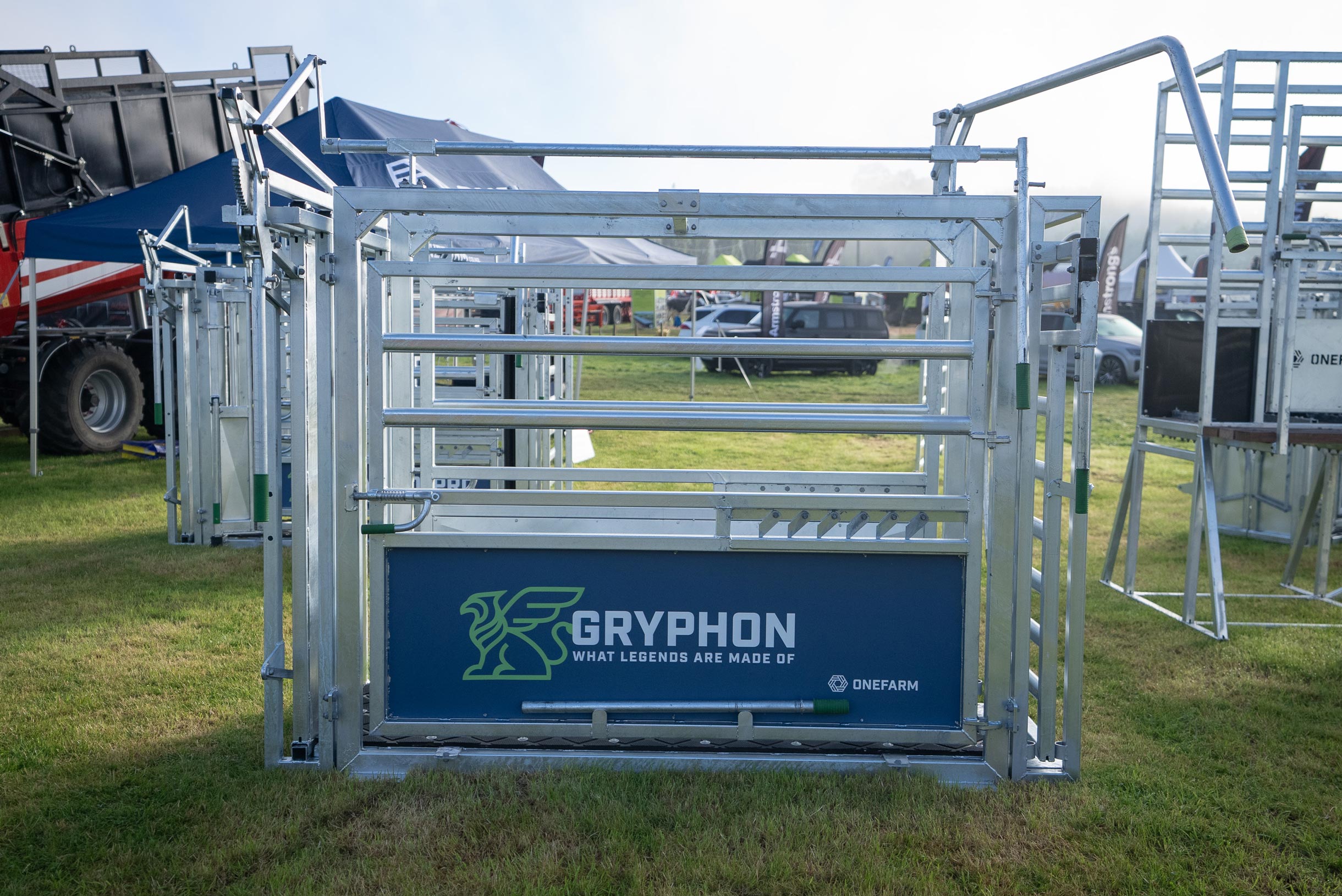

If you’re after a tough, reliable cattle Crush that focuses on the essentials and delivers smooth day-to-day handling, the Gryphon Crush is built for the job.

Designed as our vetless model, the Gryphon is ideal for weighing, bolusing, de-horning, drafting, and general cattle handling work. While it keeps things simple, there’s been no compromise on strength, with reinforced construction designed to confidently handle everything from calves through to heavy cattle and bulls.

The head bail can be operated from the front and the rear of the Crush via the two sets of handles provided. Operating from the rear, out of the line of site of cattle is the predominant option.

Each Gryphon Crush also comes fitted with an off-side drafting handle and is fully compatible with Gallagher and Tru-Test equipment, making it easy to integrate into your existing setup. Built around the core functions farmers use every day, the Gryphon delivers practical cattle handling without unnecessary complexity.

Gryphon Crush includes

Operate the head bail and sliding gate from anywhere along the side of the Crush.

Every Onefarm crush comes with an offside drafting kit included as standard. No additional cost, no optional extras. Draft cattle directly out of the offside of the crush without breaking stride. It's the kind of feature that should come with every crush, so we made sure it does.

The Gryphon is available in both left and right-hand operation, making it easy to match the flow and layout of your existing yards. This flexibility allows the Crush to integrate more naturally into a wider range of farm setups without compromising cattle movement or operator access.

All Onefarm crushes come standard with heavy duty rubber matting bolted to the floor. It's the superior surface for cattle handling. Cleats grip hooves as cattle steam in, preventing slipping and keeping them settled. Softer underfoot than steel or fibreglass grating, and it kills the noise. A simple addition that makes a real difference.

10 Year Warranty

10 Year Warranty

On the hot-dip galvanised steel

Designed in NZ

Designed in NZ

With high quality steel in conjunction with our engineers and valued customer feedback

Free Delivery

Free Delivery

to your nearest Mainfreight

Commercial - Steel Warranty

Commercial - Steel Warranty

36-month structural warranty on all steel.

View full details

Your enquiry

Gryphon Crush

Fill out the form below and one of our Kiwi based experts will be in touch for a commitment-free chat about whether this yard is the right fit for you.

.
.
.
.
.
.
.
. Gryphon Crush

NOW $8,099 + GST

Was $8,999

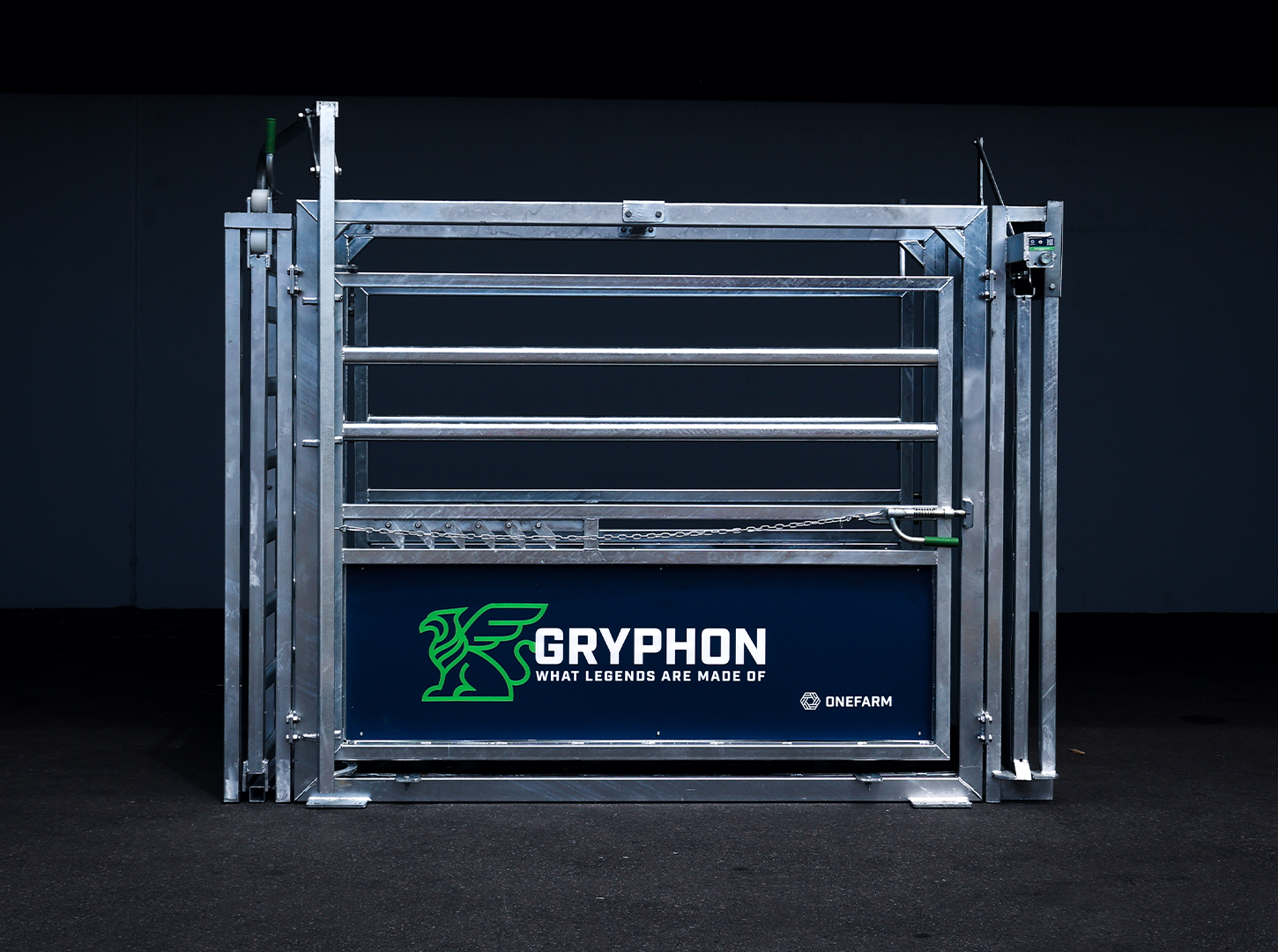

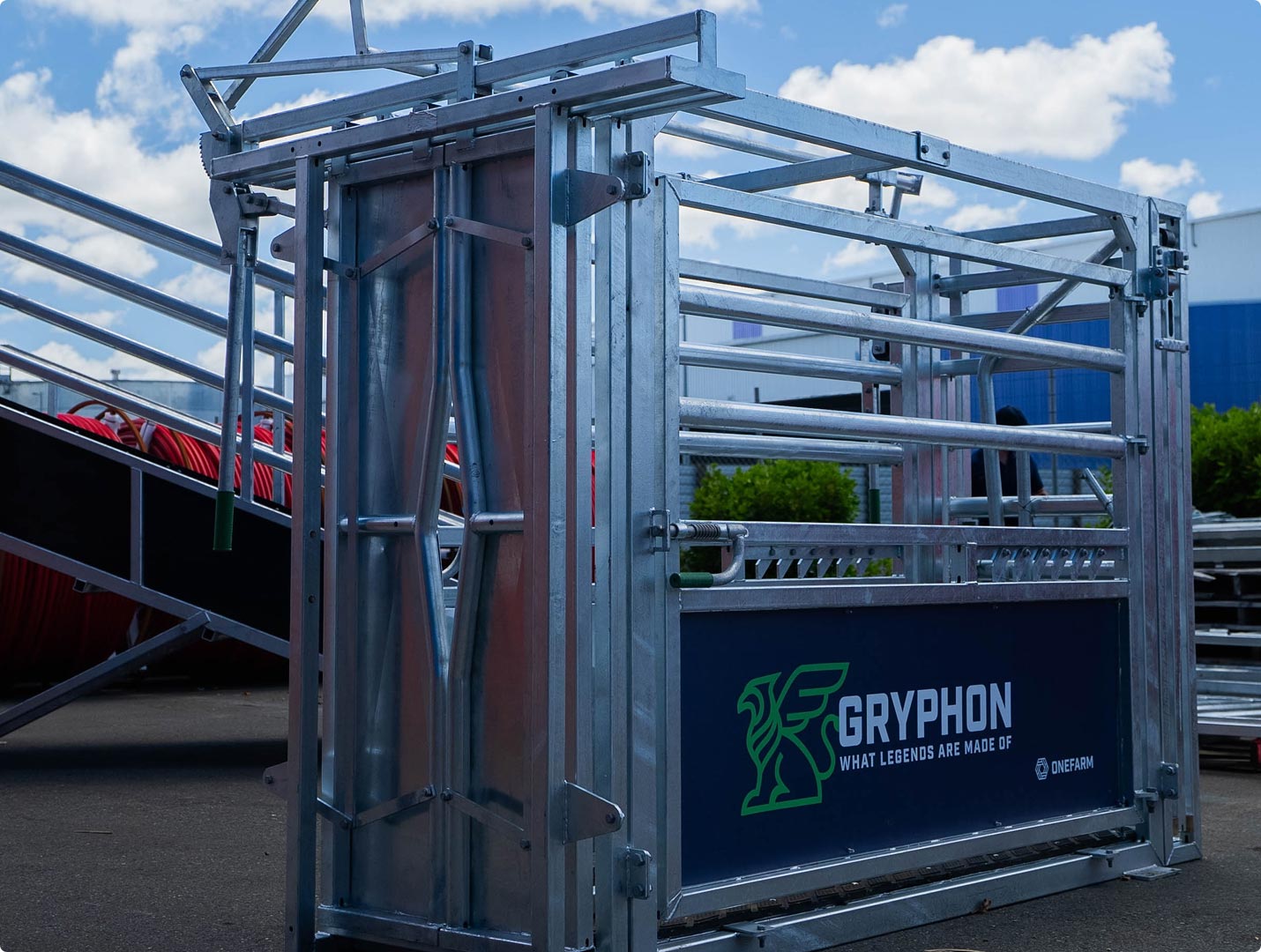

The Gryphon Crush is our 'Vetless' model, available in both left and right-hand operation to accommodate all yards. Each Gryphon comes equipped with an Off-Side Drafting Handle.

View Crush

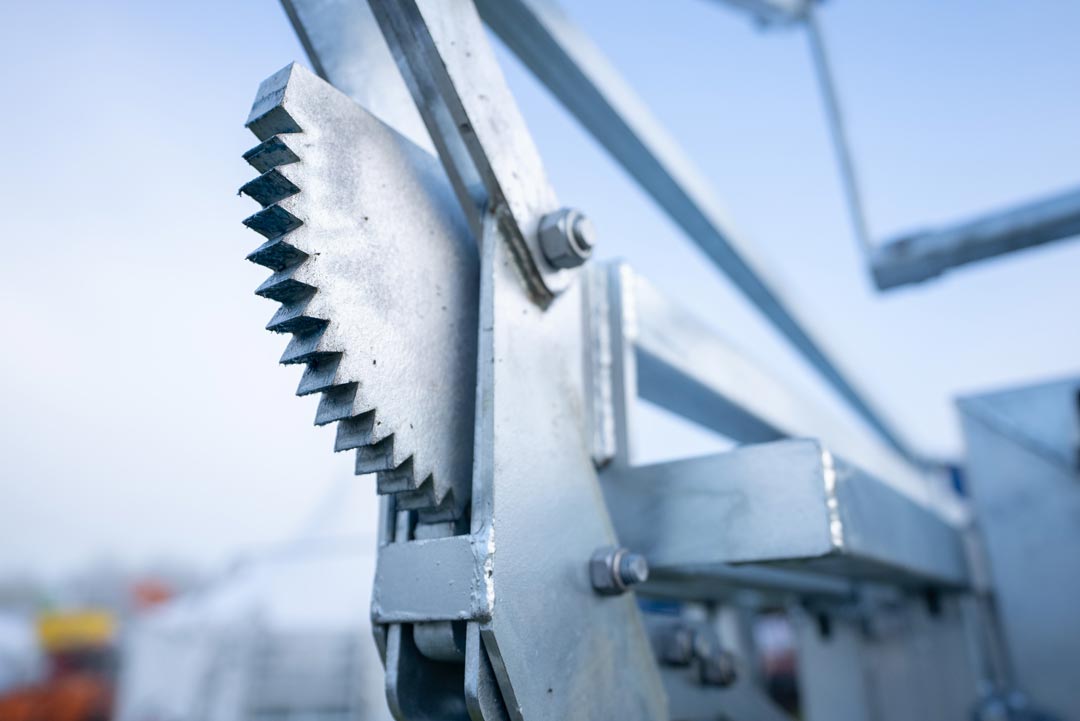

Heavy Duty Ratchet Head Bail

Lock (20mm thick plate, 2x locking prongs for definte hold). We've tried several options - these are the most reliable
Front Head Bail Operation
Gussets
Rear Head Bail Operation

Out of line of sight of cattle
80x50x5mm Framing
Additional Bracing

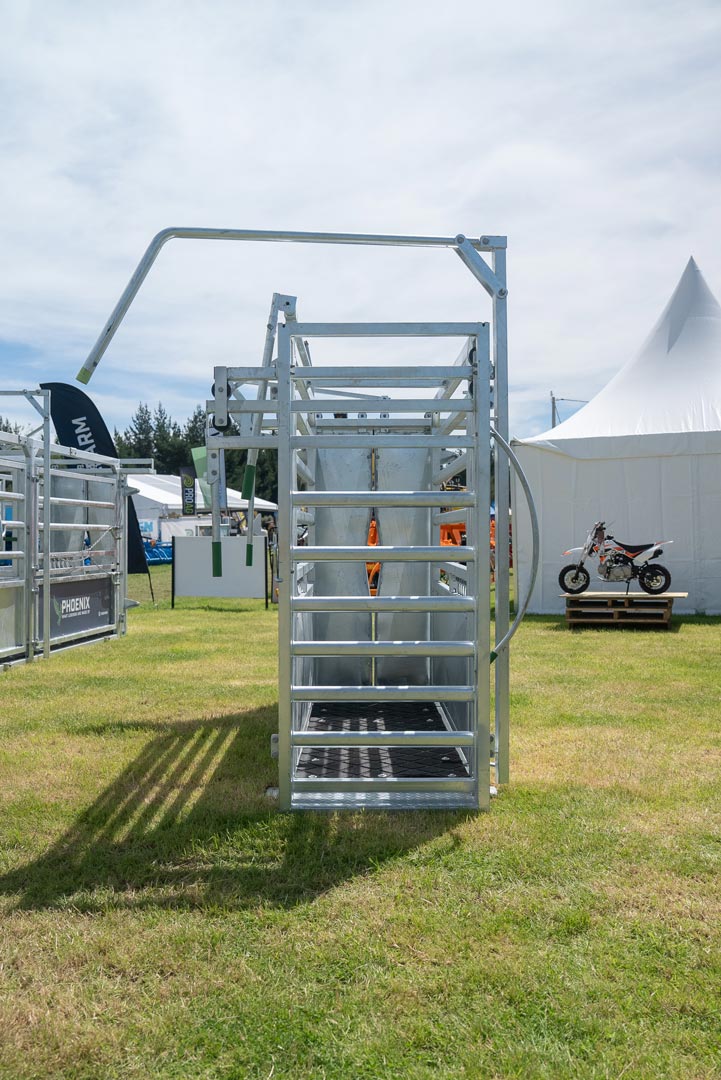

Off-Side Drafting Handle
Smooth Sliding Gate
Anti-Backing Ratchet System
Heavy Duty Rubber Mat

Included with every Crush
Crush Specs

The important specs for upgrading your yards with a Gryphon

Built tough for everyday cattle work, the Gryphon Crush is designed to confidently handle everything from routine weighing and drafting through to heavier cattle and bulls. It’s a simple, hard-working setup focused on strength, smooth operation, and reliable stock handling.

External Length

2.765m

Internal Length

2.4m

External Width (on ground)

850mm

Internal Width

750mm

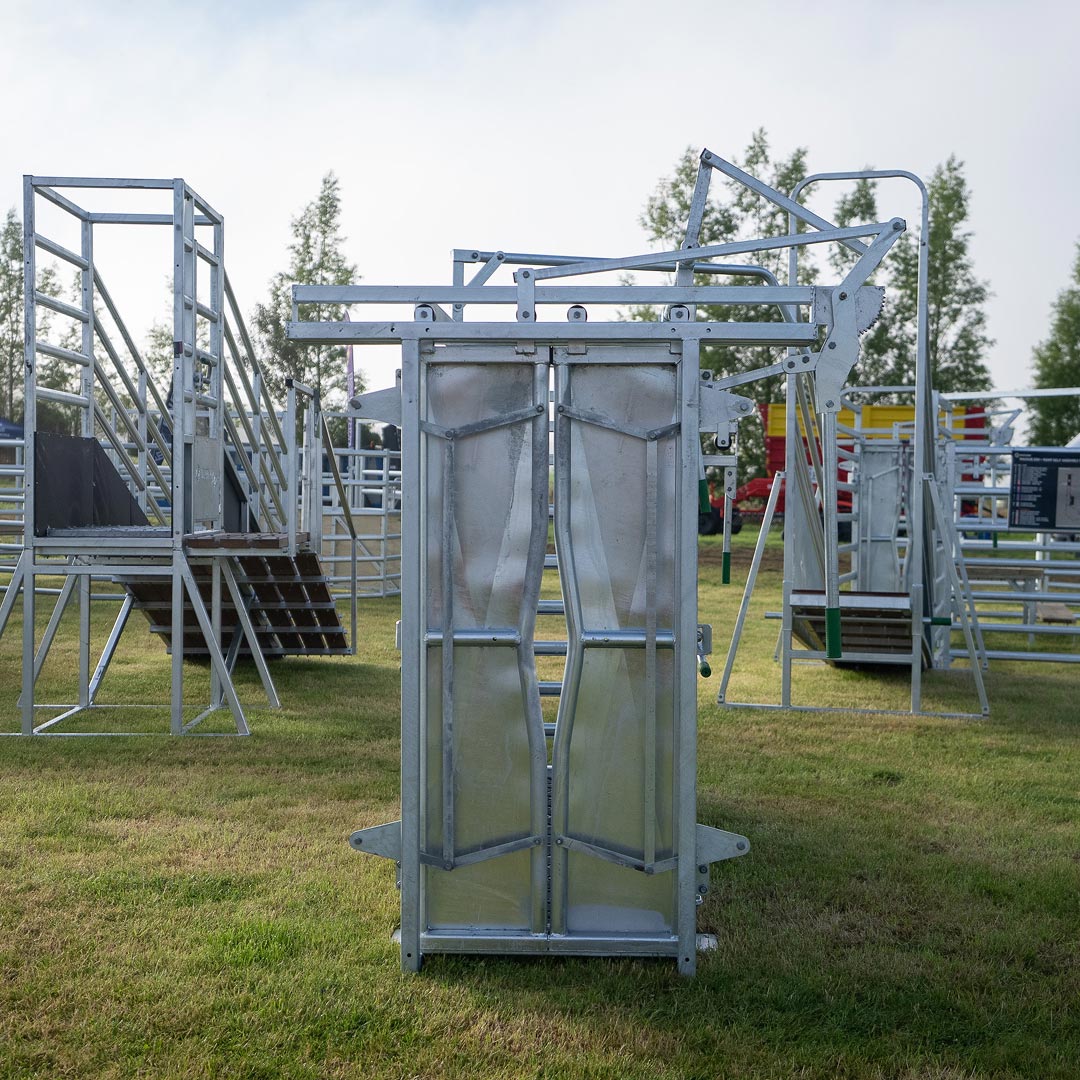

Head Bail (Opening)

The walk-through head bail design means the head bail opening maxes out at 750mm when fully open.

HDG to NZAS Standard

Every Yard is full hot dipped galvanized after welding to NZAS standards

Total Height

2.5m (to top of Off-Side Handle pivot)

The Buying Process

Select the right Crush for your needs

Choose from four Crush models to suit your cattle handling operation.

01

Choose your operating side

Choose the operating side that suits you best: left-hand or right-hand access.

02

Confirm and secure your order

Your order is confirmed and secured once the 50% deposit has been received.

03

Assembly and quality testing

Your Crush is assembled and tested by our team before leaving the warehouse.

04

Delivery to your local depot

Your Crush is delivered to your nearest Mainfreight depot free of charge.

05

Five reasons to choose a onefarm crush

01

Get accurate stock weights

One of the main benefits of using a crush for weighing vs. a weigh platform is the accurate weights you get out of a crush. Because you weigh the whole crush and the beast inside it, it doesn't matter if stock are leaning up against the side of the crush.

02

Safer for you and your stock

Smart features like the squeeze, anti-backing system, and diamond shaped neck yoke keeps cattle settled and reduce the risk of things going sideways.

03

More control, wherever you stand

We've tried all sorts of locking systems and we've come full circle back to the heavy duty ratchet lock. We use a dual pronged lock, 20mm steel plate and deep teeth to provide complete control when bailing a cattle beast. No slipping, no releasing. Pure strength using an tried and tested locking system.


04

Faster, more efficient cattle work

Better flow, easier access, and less mucking around means you get through jobs quicker and get back to everything else waiting on the list.

05

Built to last (and stay that way)

Hot dipped galvanising and tough components mean no constant repairs or maintenance. Just a crush that keeps doing its job year after year.

Gryphon Crush

Gryphon Crush Features

01

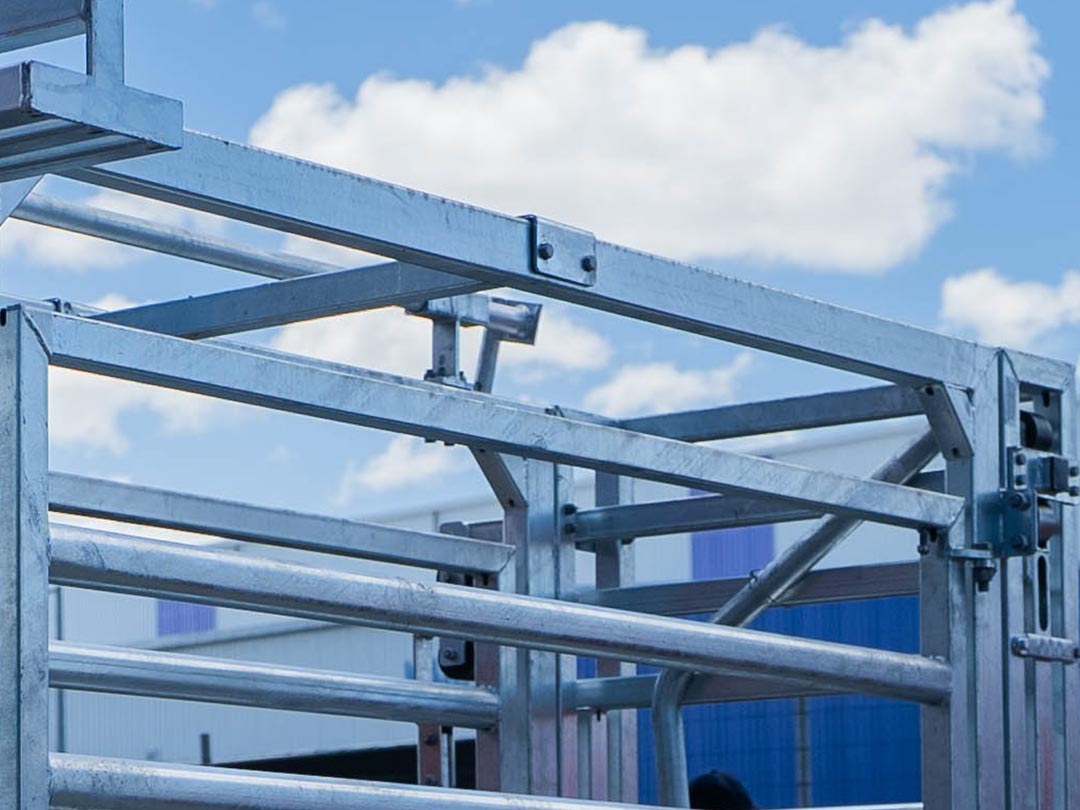

Lateral Bracing and Gussets Where It Matters

Despite being the smaller of the four models, this Crush has been designed to handle all and any stock classes with plenty of bracing. None of the steel in this crush has been compromised.

02

Hot Dipped Galvanising

All Crushes are hot dipped galvanised after welding. 10-year warranty on all hot dipped galvanising.

03

80x50x5mm Frame Construction on all models

All crushes use a heavy duty 80x50x5mm frame construction.

04

Left or Right-Hand Operation

All Crush models are available in either left hand or right hand operation to suit any flow of yard.

05

Anti-Backing Ratchet System

Use the anti-backing ratchet bar to prevent cattle from moving backwards once head bailed.

06

Heavy Duty Rubber Mat

Included with every Onefarm Crush is a heavy duty rubber mat bolted down to a steel framed floor. Softer and gripper under foot. They also reduce noise.

07

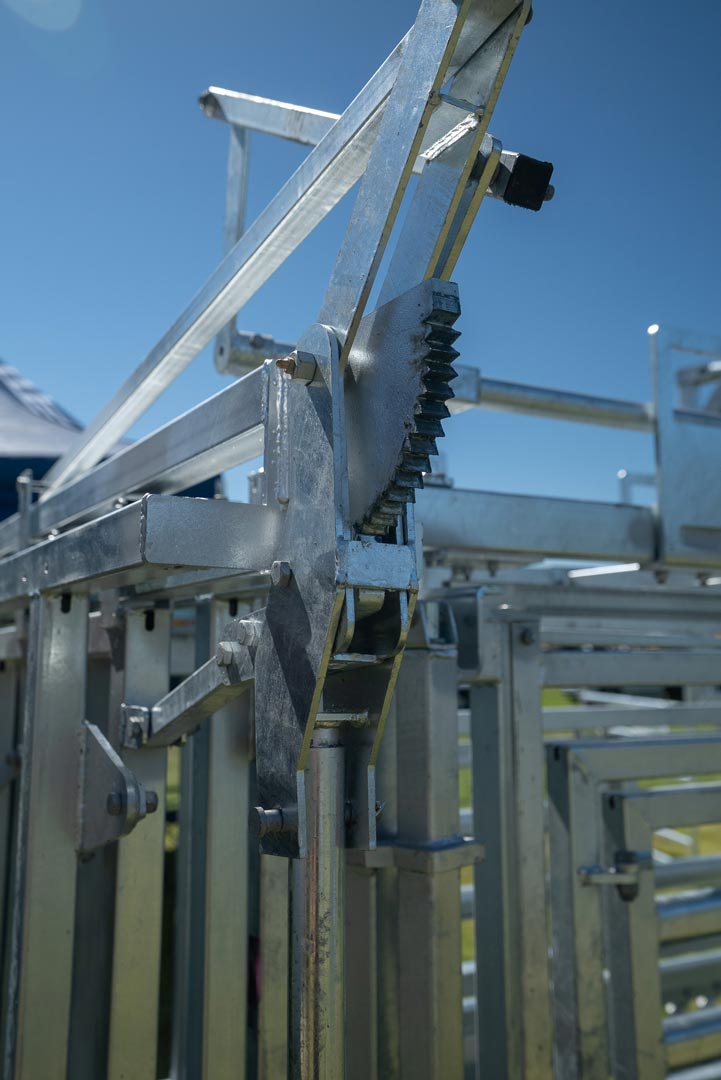

Heavy duty ratchet style head bail lock

We've tried numerous locking designs over the years and have come full circle back to the one design we know works, and we've beefed it up. 20mm thick railway iron strength steel with 2 locking prongs. Hold cattle safely and reliably.

08

Off-Side Drafting Handle

Set your system up to suit your workflow, making drafting smoother and reducing double-handling.

09

Front & Rear Head Bail Operation

Operate the head bail from the front or the rear of the crush. Front (for up close control), Rear (for operation out of the line of site - most common).

Frequently Asked Questions

Questions? We collected a few common ones below. Yours not there? Reach out and ask. The team is here to help.

  • 10-year hot-dipped galvanising warranty
  • 3-year structural warranty

All Onefarm Crushes are compatible with Gallagher and Tru-Test heavy duty load bars. These measure approximately 1,100mm in nominal length. For Tru-Test, the HD5T model is compatible with our Crush range.

Yes, all Crush models are available in left-hand and right-hand operation.

All Crushes are on a 7-8 week lead time.

50% deposit upon confirmation, with the 50% balance due prior to dispatch.

Yes. If you purchase a Crush individually, we deliver it to your nearest Mainfreight depot free of charge. If you purchase a Crush as part of a full set of yards, we deliver free to farm.

Yes, the Off-Side Drafting Handle Kit and Heavy Duty Rubber Mat are included with every Crush.

Yes, all Crushes are assembled and tested prior to leaving either of our warehouses in Hamilton or Christchurch.
