Is the Gryphon Pro right for you?

If you need a heavy-duty vetless crush that doesn’t compromise on strength or control, the Gryphon Pro Crush is built for demanding day-to-day cattle work.

It’s designed for farmers handling everything from calves through to large cattle and bulls, with a built-in squeeze system and dual anti-backing ratchets that give you greater control when restraining stock. Split side gates on both sides provide flexible access where you need it most, while additional top access points make tasks like EID, injections, and close handling easier and safer.

The mechanical locking head bail can be operated from anywhere along the Crush, helping you stay in control without needing to reposition during work. Combined with heavy-duty framing, reinforced bracing, and a compact, efficient layout, the Gryphon Pro is built to handle tough cattle work day in, day out.

Gryphon Pro Crush includes

Every Onefarm Crush is fully hot dipped galvanised after welding, not before. That matters because it means the entire Crush, including welds, joins, and hard-to-reach areas, is coated inside and out for maximum protection against rust and corrosion. It’s built to handle harsh New Zealand conditions, from muddy yards to coastal properties, without the constant maintenance and repainting that comes with lower-grade finishes. The result is a tougher, longer-lasting Crush that stays stronger for longer.

All Onefarm crushes come standard with heavy duty rubber matting bolted to the floor. It's the superior surface for cattle handling. Cleats grip hooves as cattle steam in, preventing slipping and keeping them settled. Softer underfoot than steel or fibreglass grating, and it kills the noise. A simple addition that makes a real difference.

The integrated squeeze system gives you greater control when handling cattle by narrowing the internal width of the Crush down to 410mm when needed. It’s especially useful for slowing down heavier cattle, securing restless animals, or safely handling smaller stock like calves during treatments and weighing. The added restraint helps reduce movement inside the Crush, making cattle work safer, calmer, and easier to manage.

Every Onefarm crush comes with an offside drafting kit included as standard. No additional cost, no optional extras. Draft cattle directly out of the offside of the crush without breaking stride. It's the kind of feature that should come with every crush, so we made sure it does.

10 Year Warranty

10 Year Warranty

On the hot-dip galvanised steel

Designed in NZ

Designed in NZ

With high quality steel in conjunction with our engineers and valued customer feedback

Free Delivery

Free Delivery

to your nearest Mainfreight

Commercial - Steel Warranty

Commercial - Steel Warranty

36-month structural warranty on all steel.

View full details

Your enquiry

Gryphon Pro Crush

Fill out the form below and one of our Kiwi based experts will be in touch for a commitment-free chat about whether this yard is the right fit for you.

.
.
.
.
.
.
.
. Gryphon Pro Crush

NOW $11,249 + GST

Was $12,499

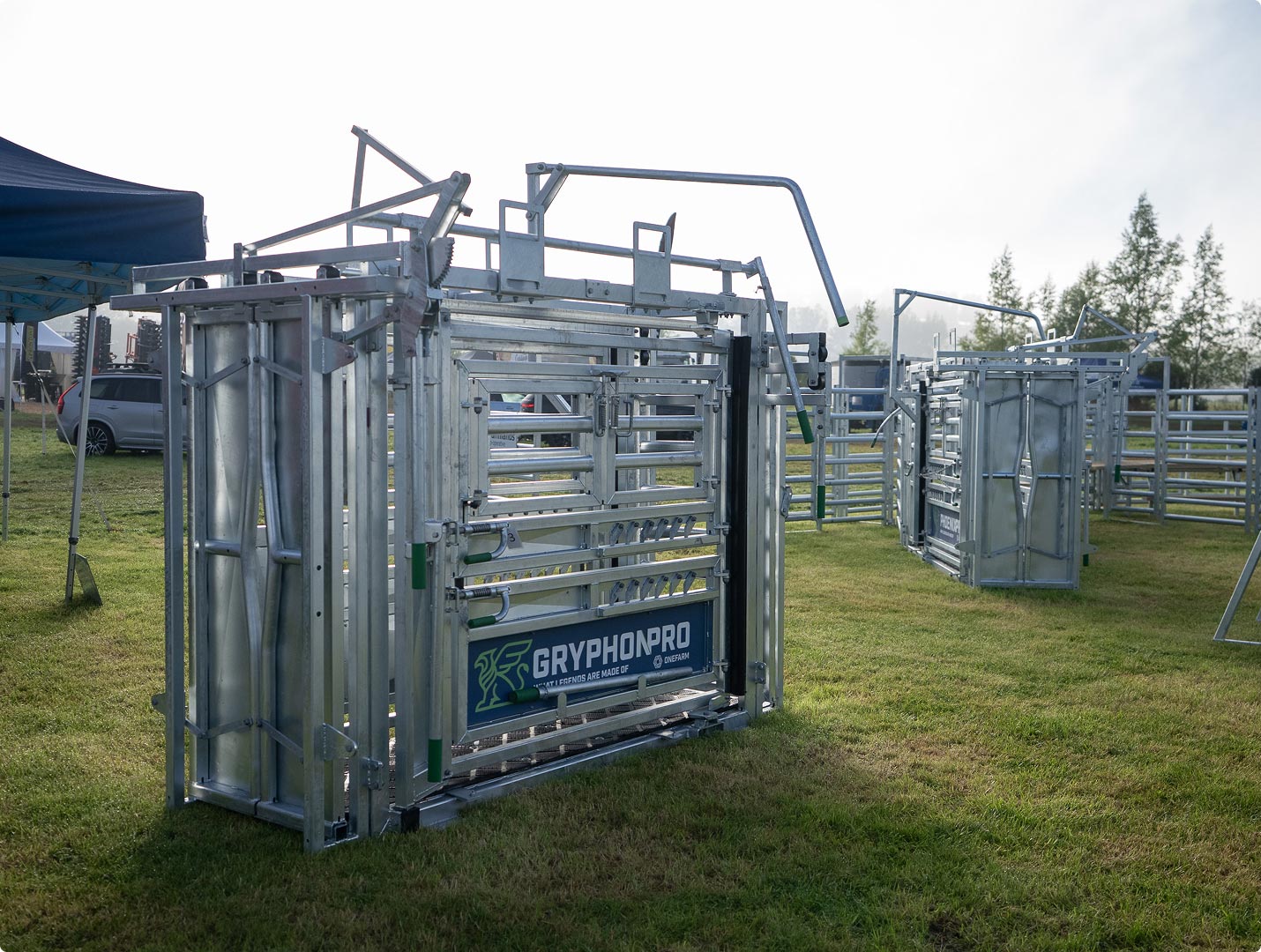

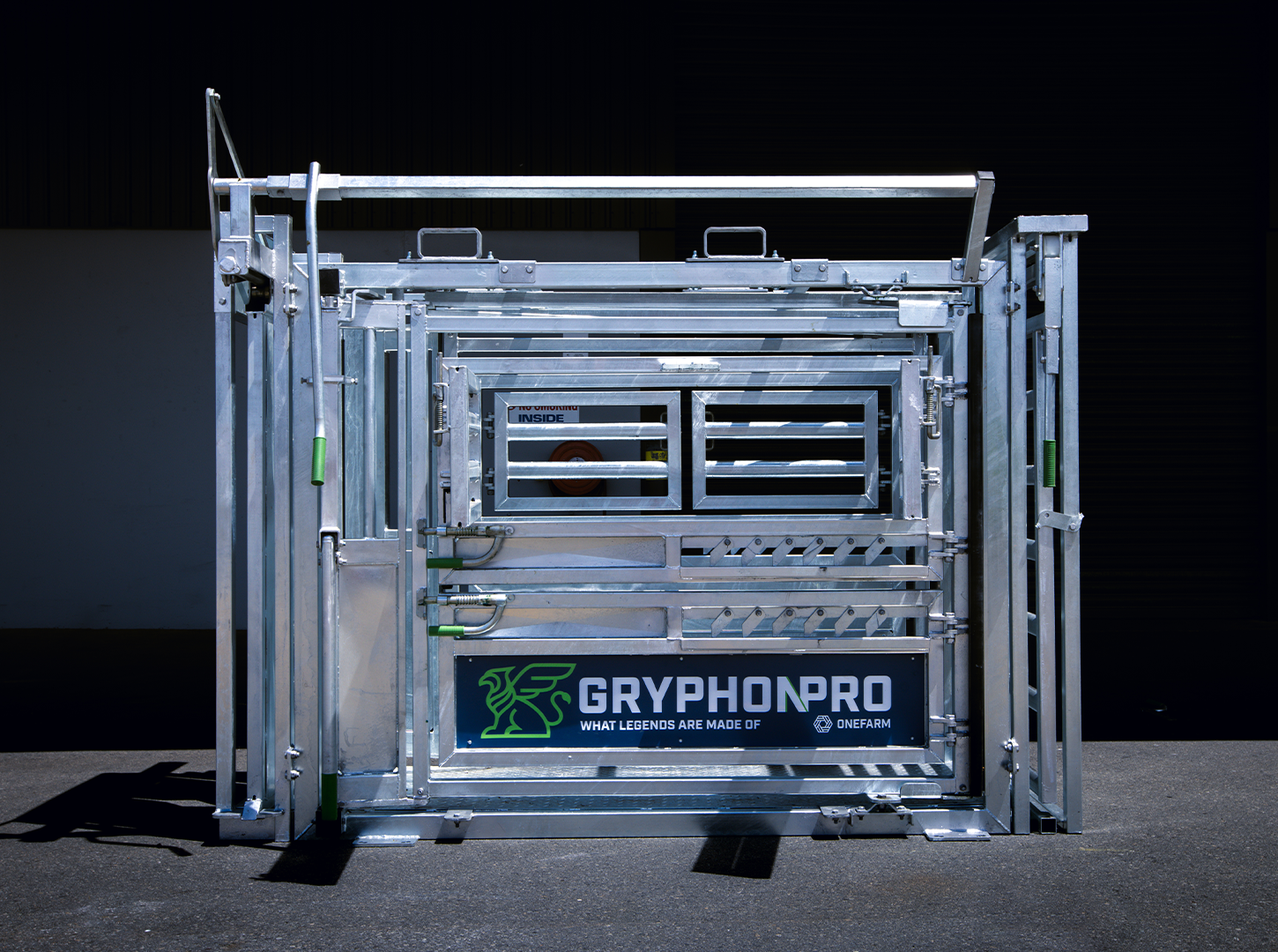

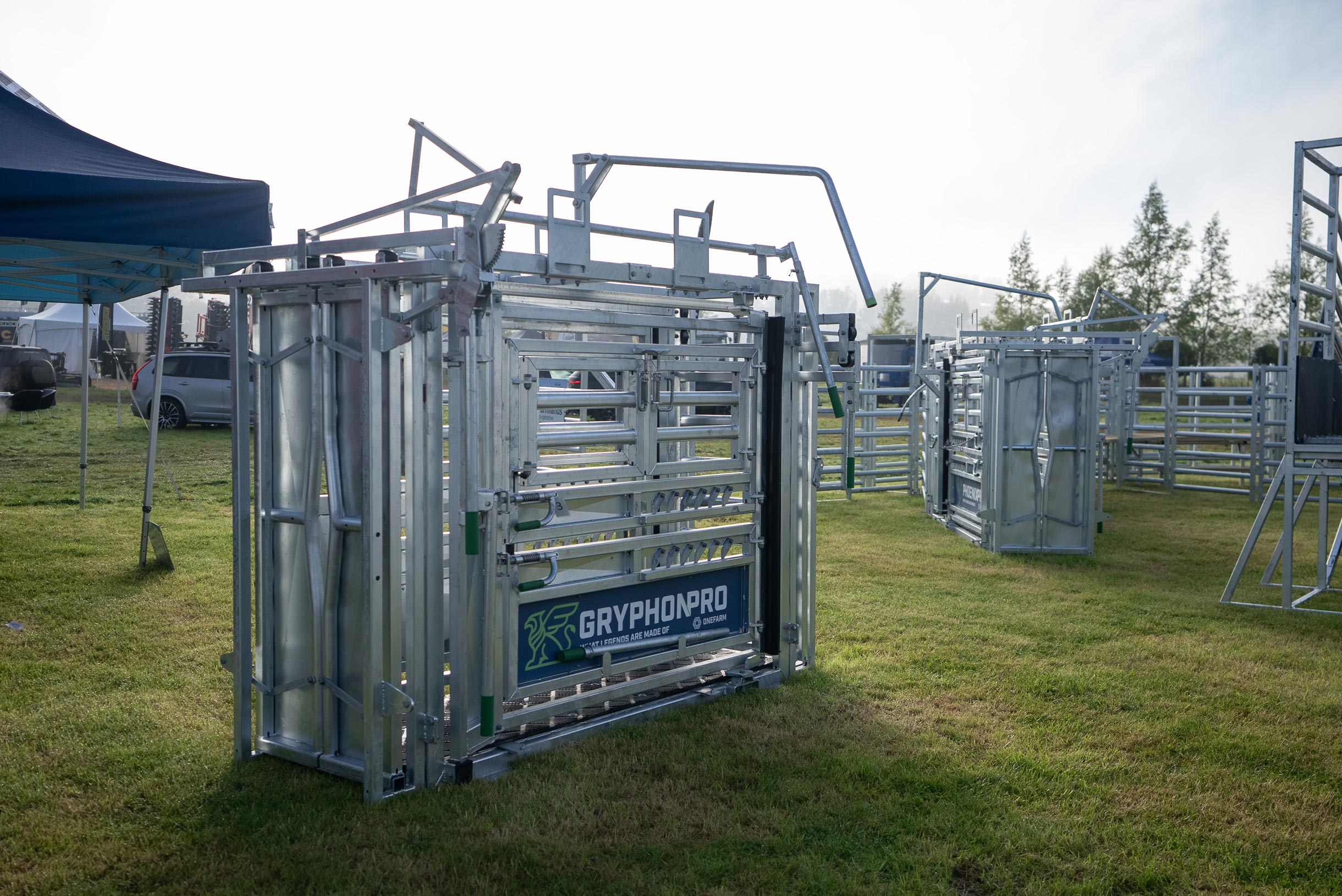

The Gryphon Pro, our heavy duty vetless model. Equipped with a squeeze, two anti-backing ratchet systems, and split gates on both sides, this grunty crush has been designed to take on bigger cattle/bulls and also calves where you need to squeeze up the internal width.

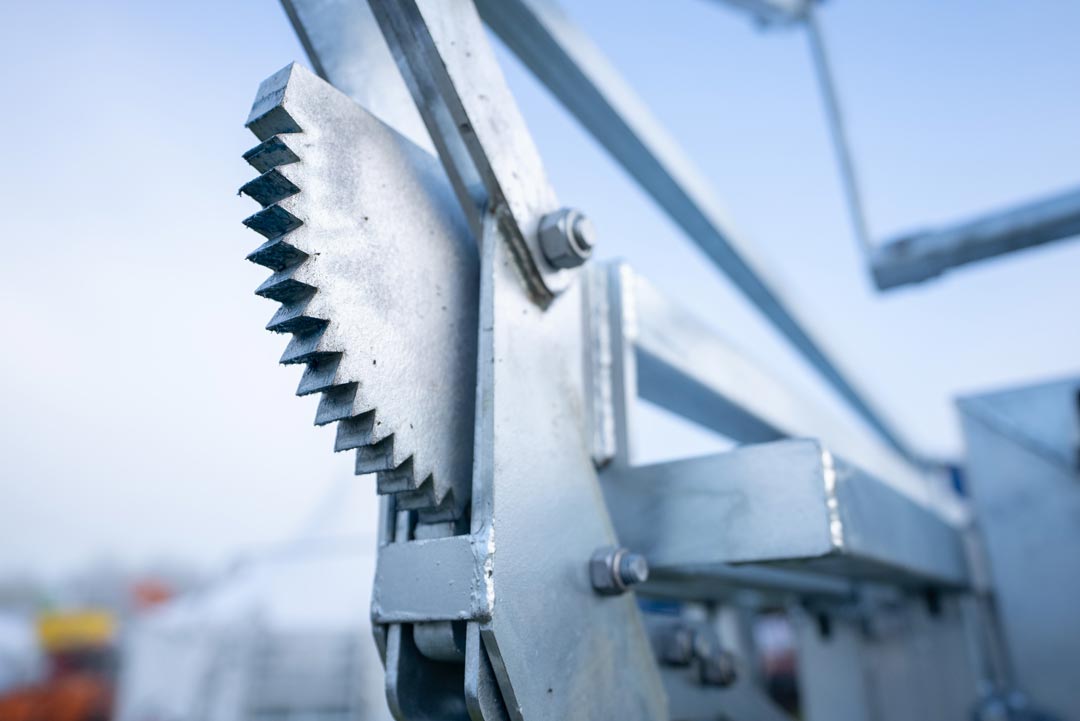

Heavy Duty Ratchet Head BailLock

20mm thick plate, 2x locking prongs for definte hold. We've tried several options - these are the most reliable

Additional Diagonal Bracing
Lifting Pockets

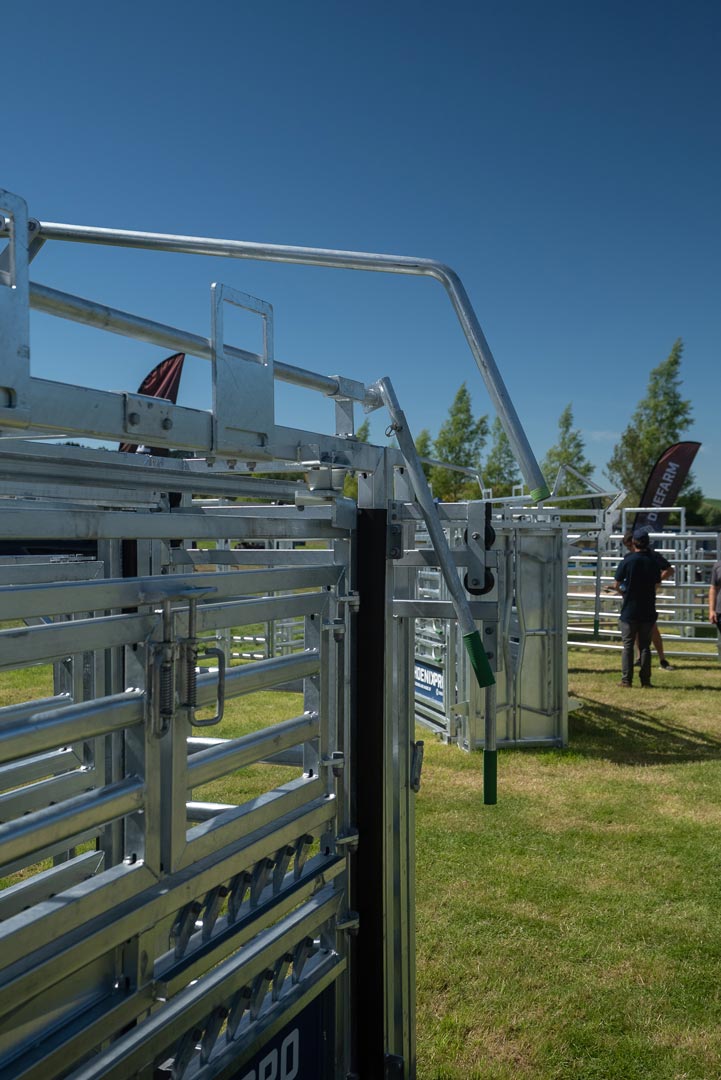

Off-Side Drafting Handle
Rear Head BailOperation

Out of line of sight of cattle

Smooth Sliding Gate
Top Half Gates Split
2 x Anti-Backing Bar Heights
Heavy Duty Rubber Mat

Included with every Crush

Squeeze Control Arm
Crush Specs

The important specs for upgrading your yards with a Gryphon Pro

Built for tougher handling work, the Gryphon Pro is designed to confidently manage everything from calves through to heavy cattle and bulls. With added restraint control and reinforced construction, it’s made for demanding, everyday farm use.

External Length

2.765m

Internal Length

2.4m

External Width (on ground)

850mm

Internal Width

750mm

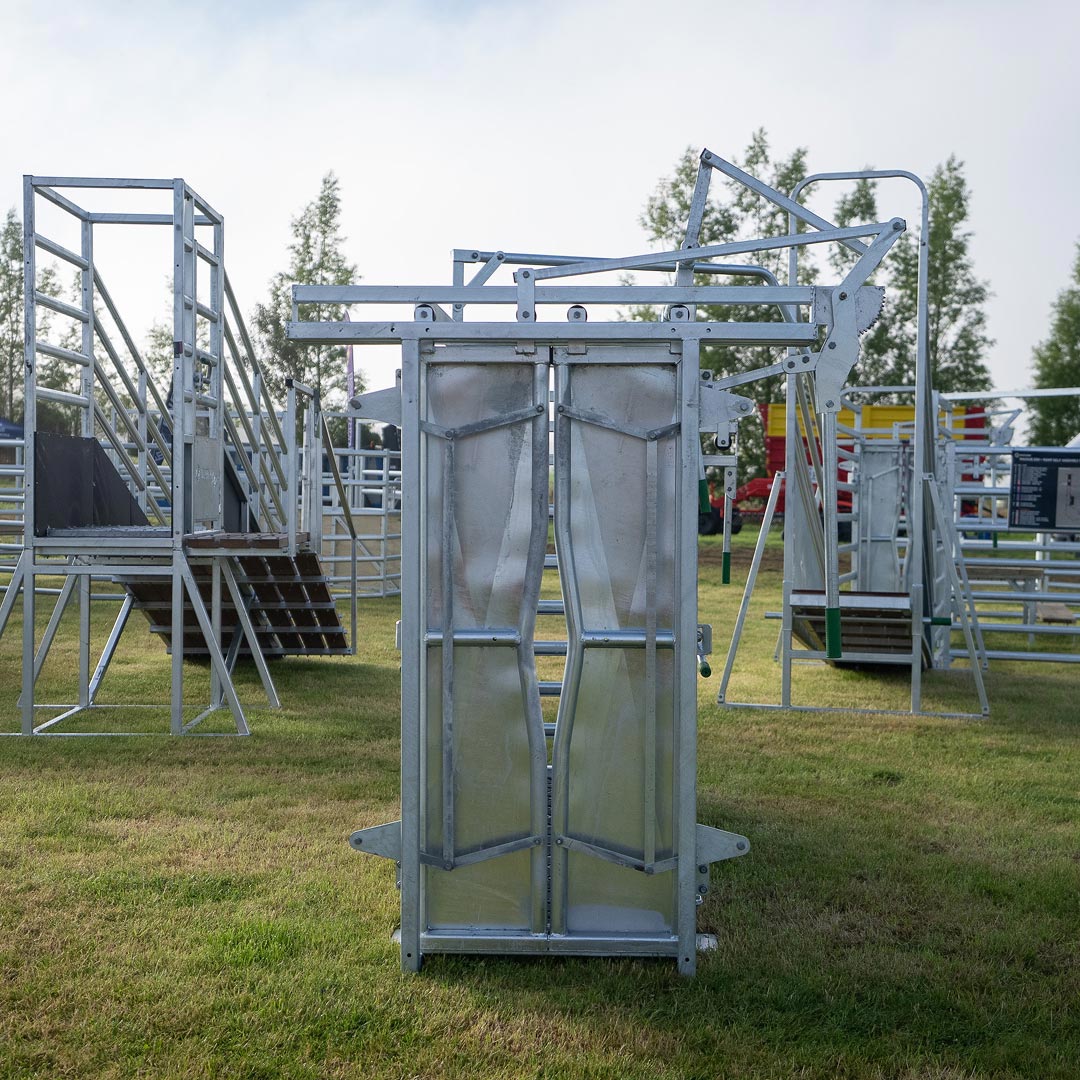

Head Bail (Opening)

The walk-through head bail design means the head bail opening maxes out at 750mm when fully open.

HDG to NZAS Standard

Every Yard is full hot dipped galvanized after welding to NZAS standards

Total Height

2.5m (to top of Off-Side Handle pivot)

Five reasons to choose a onefarm crush

01

Get accurate stock weights

One of the main benefits of using a crush for weighing vs. a weigh platform is the accurate weights you get out of a crush. Because you weigh the whole crush and the beast inside it, it doesn't matter if stock are leaning up against the side of the crush.

02

Safer for you and your stock

Smart features like the squeeze, anti-backing system, and diamond shaped neck yoke keeps cattle settled and reduce the risk of things going sideways.

03

More control, wherever you stand

We've tried all sorts of locking systems and we've come full circle back to the heavy duty ratchet lock. We use a dual pronged lock, 20mm steel plate and deep teeth to provide complete control when bailing a cattle beast. No slipping, no releasing. Pure strength using an tried and tested locking system.


04

Faster, more efficient cattle work

Better flow, easier access, and less mucking around means you get through jobs quicker and get back to everything else waiting on the list.

05

Built to last (and stay that way)

Hot dipped galvanising and tough components mean no constant repairs or maintenance. Just a crush that keeps doing its job year after year.

Gryphon Pro Crush

Gryphon Crush Pro Features

01

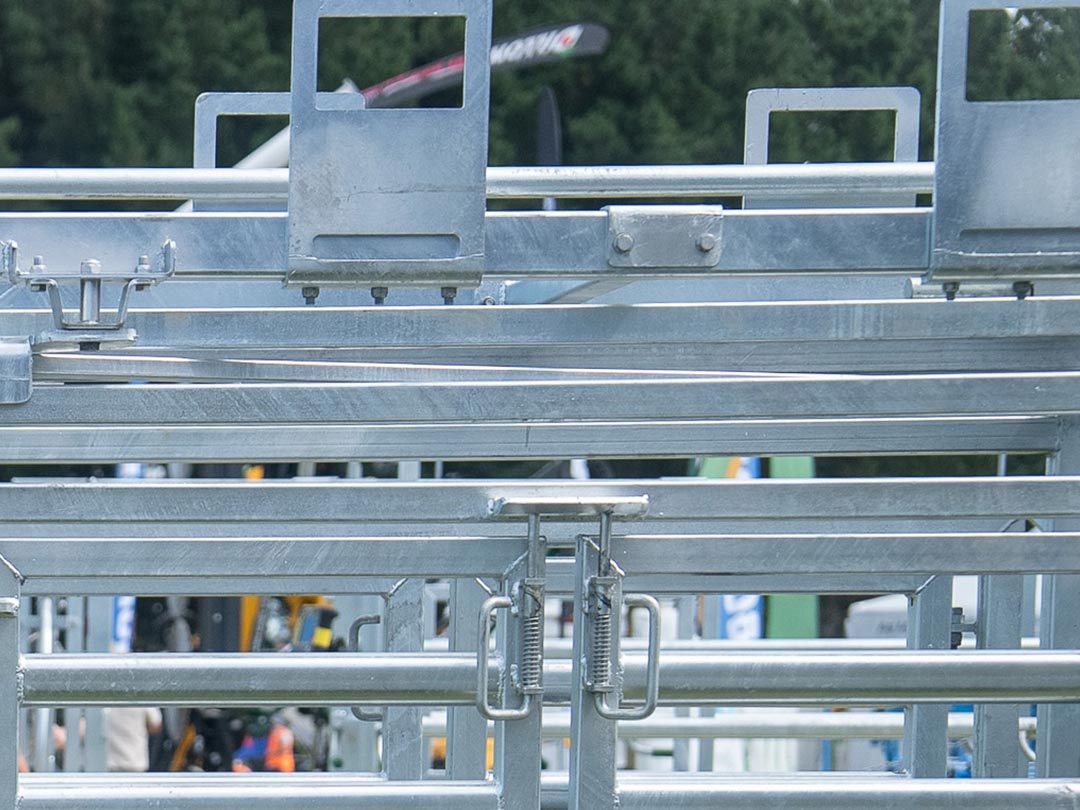

Includes Lifting Pockets

Both of our Pro model Crushes feature lifting pockets to allow for easy installation of your Crush.

02

Hot Dipped Galvanising

All Crushes are hot dipped galvanised after welding. 10-year warranty on all hot dipped galvanising.

03

80x50x5mm Frame Construction on all models

All crushes use a heavy duty 80x50x5mm frame construction.

04

Split Side Gates (Both Sides)

Both side gates are two parts that can be operated as split individual parts or as full gates. Great or mothering on and the likes.

05

2 x Anti-Backing Bar Heights for Calves and Adult Cattle

Both heights mean you can control any stock class from pushing back once you have them in the Head Bail.

06

Squeeze narrows width to 410mm

Gives you extra control over bigger or stroppy cattle, holding them steady so you can work safely and confidently.

07

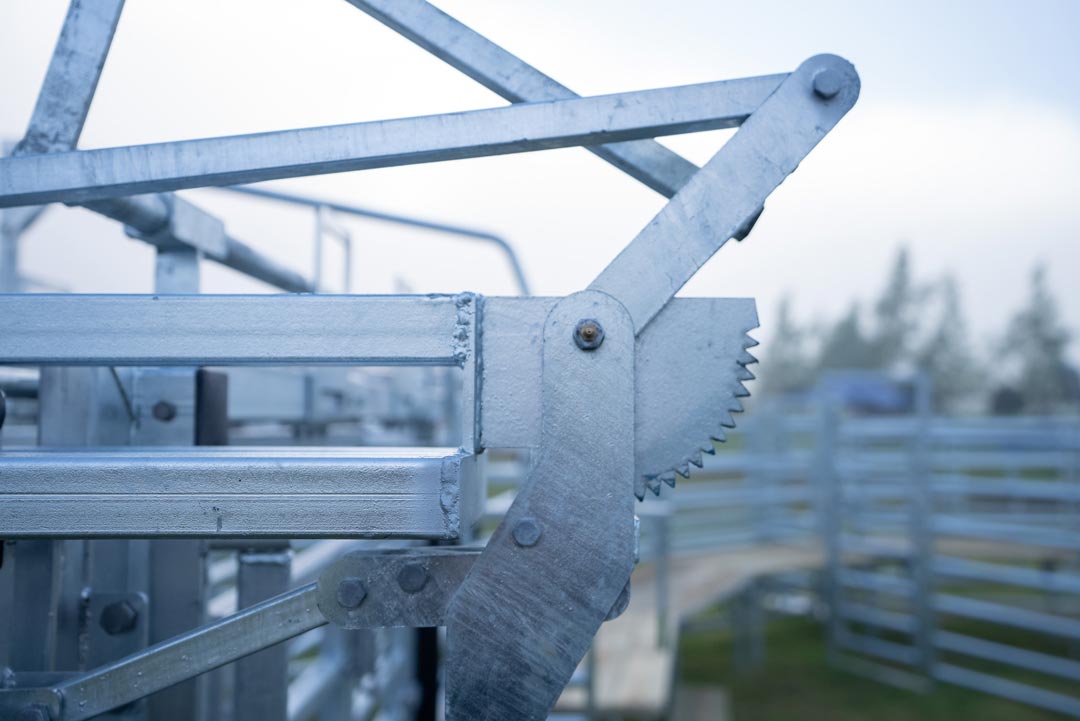

Heavy duty ratchet style head bail lock

We've tried numerous locking designs over the years and have come full circle back to the one design we know works, and we've beefed it up. 20mm thick railway iron strength steel with 2 locking prongs. Hold cattle safely and reliably.

08

Off-Side Drafting Handle

Set your system up to suit your workflow, making drafting smoother and reducing double-handling.

09

Front & Rear Head Bail Operation

Operate the head bail from the front or the rear of the crush. Front (for up close control), Rear (for operation out of the line of site - most common).

Frequently Asked Questions

Questions? We collected a few common ones below. Yours not there? Reach out and ask. The team is here to help.

  • 10-year hot-dipped galvanising warranty
  • 3-year structural warranty

All Onefarm Crushes are compatible with Gallagher and Tru-Test heavy duty load bars. These measure approximately 1,100mm in nominal length. For Tru-Test, the HD5T model is compatible with our Crush range.

Yes, all Crush models are available in left-hand and right-hand operation.

All Crushes are on a 7-8 week lead time.

50% deposit upon confirmation, with the 50% balance due prior to dispatch.

Yes. If you purchase a Crush individually, we deliver it to your nearest Mainfreight depot free of charge. If you purchase a Crush as part of a full set of yards, we deliver free to farm.

Yes, the Off-Side Drafting Handle Kit and Heavy Duty Rubber Mat are included with every Crush.

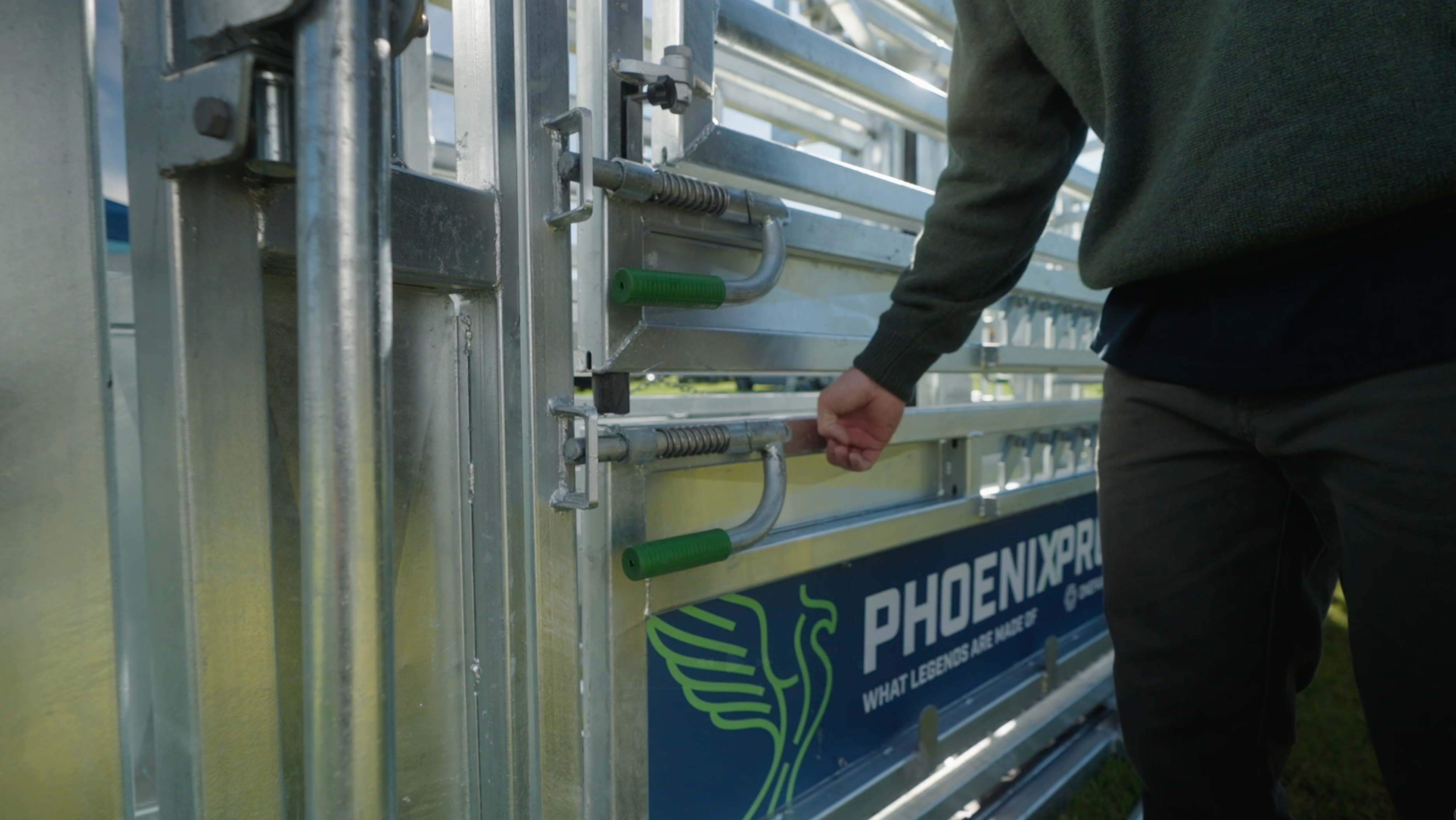

Yes, all Crushes are assembled and tested prior to leaving either of our warehouses in Hamilton or Christchurch.
