Is the Phoenix right for you?

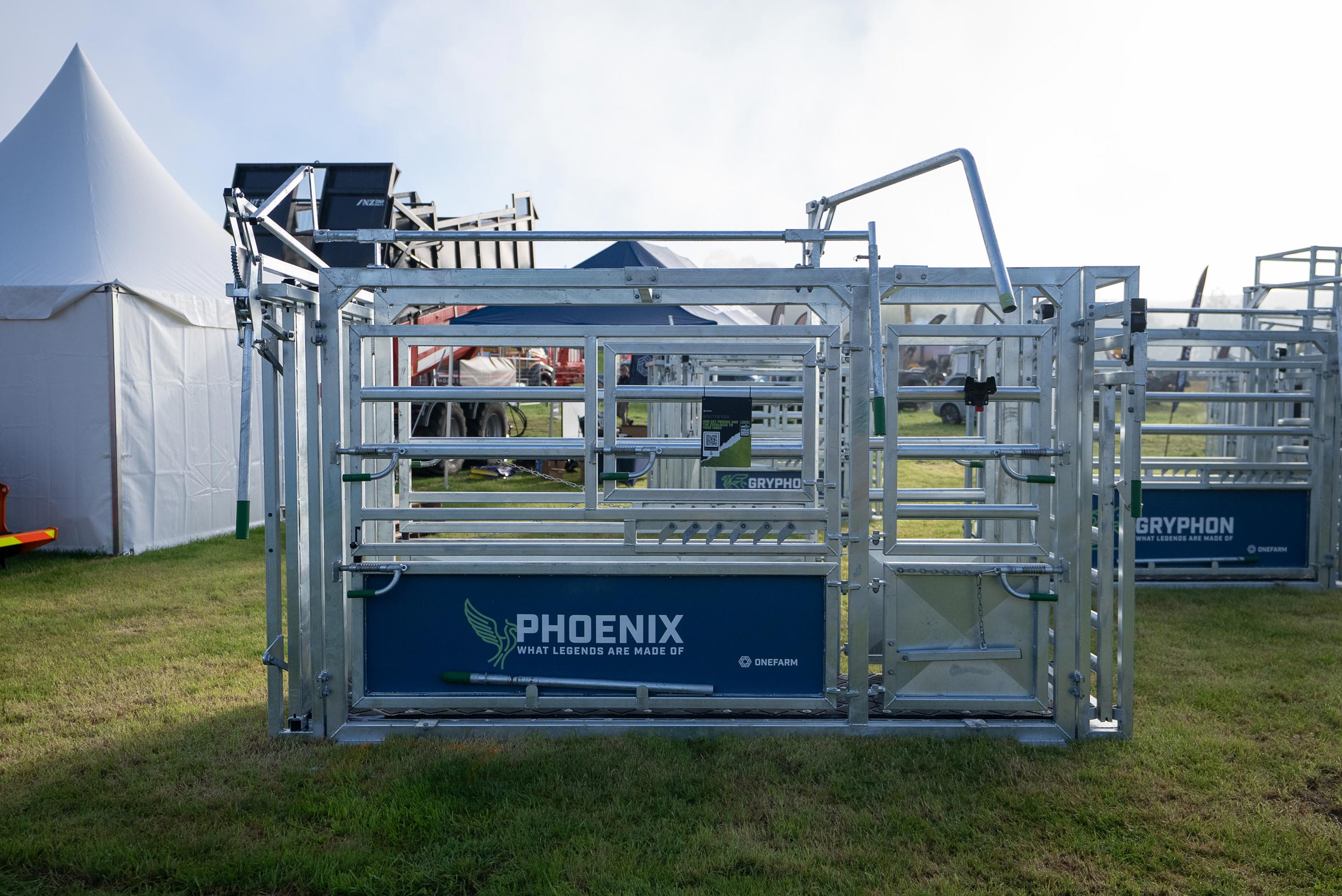

If you’re after a reliable vet Crush that covers the essentials properly without overcomplicating things, the Phoenix Crush is built to get the job done.

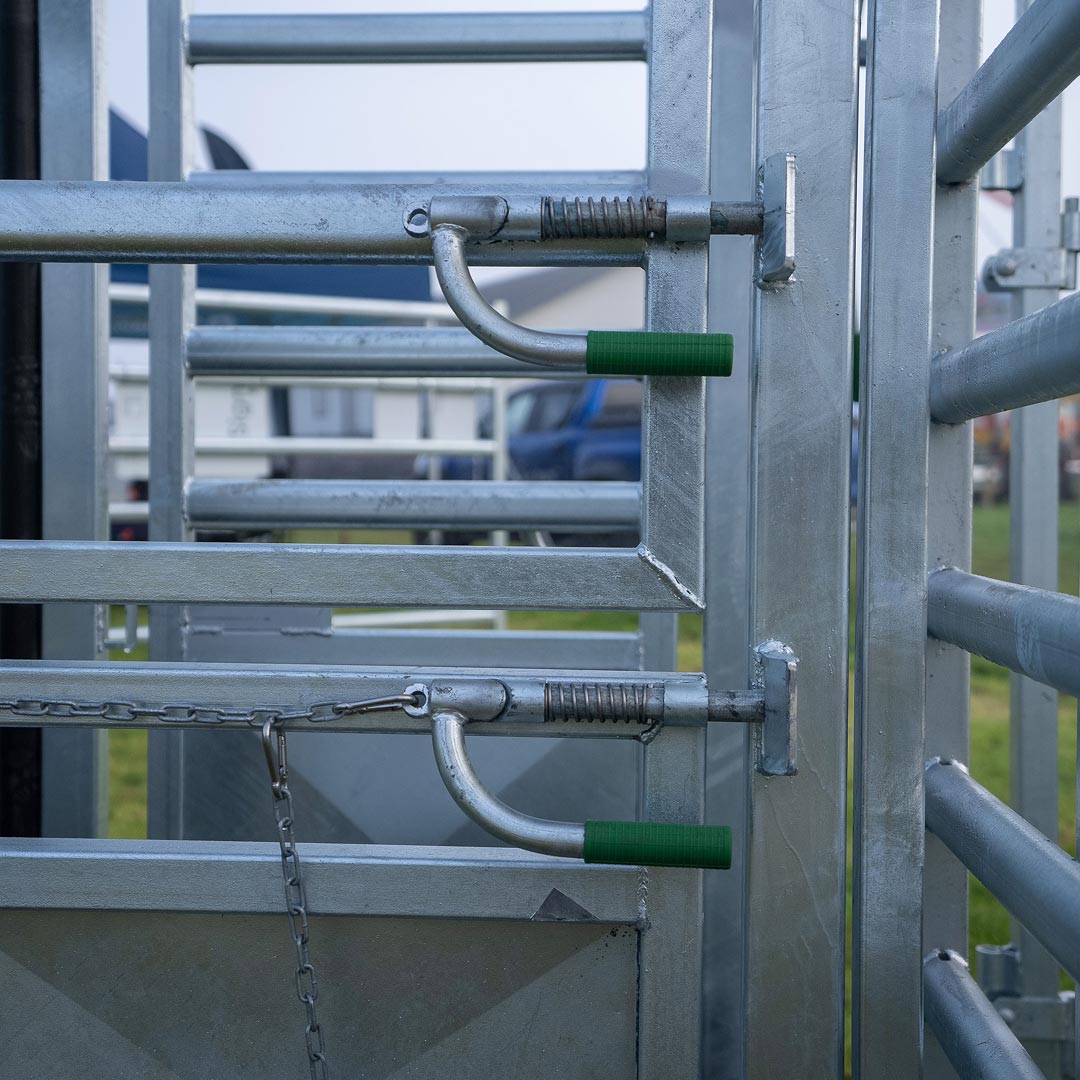

Designed for farmers regularly doing veterinary work, AI, tagging, weighing, and calf mothering duties, the Phoenix gives you practical vet access and smooth cattle handling in one solid setup. Split side gates on both sides provide safe access where you need it most, while the heavy-duty slam latches and smooth sliding systems are built for everyday farm use.

The head bail can be operated from the front and the rear of the Crush via the two sets of handles provided. Operating from the rear, out of the line of site of cattle is the predominant option.

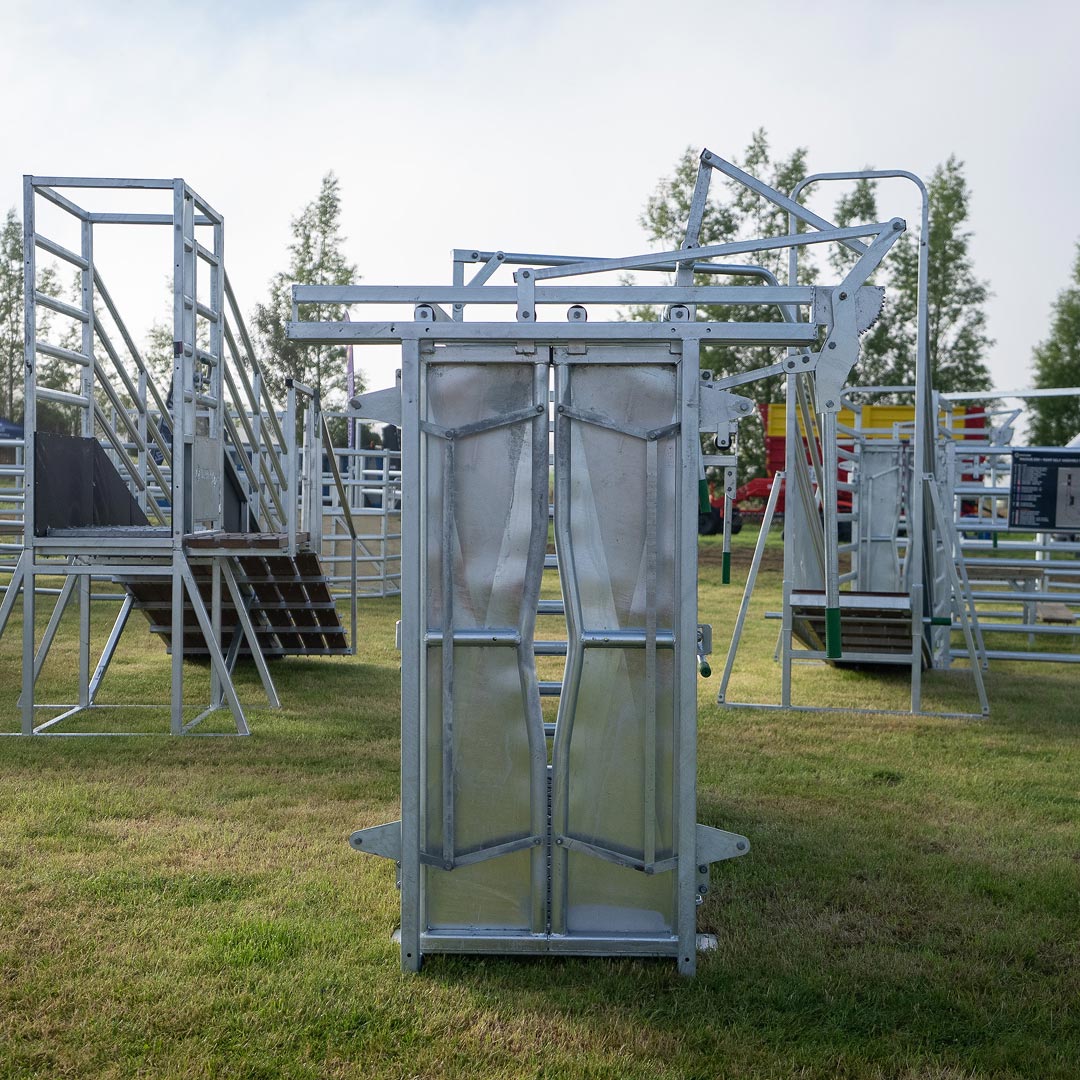

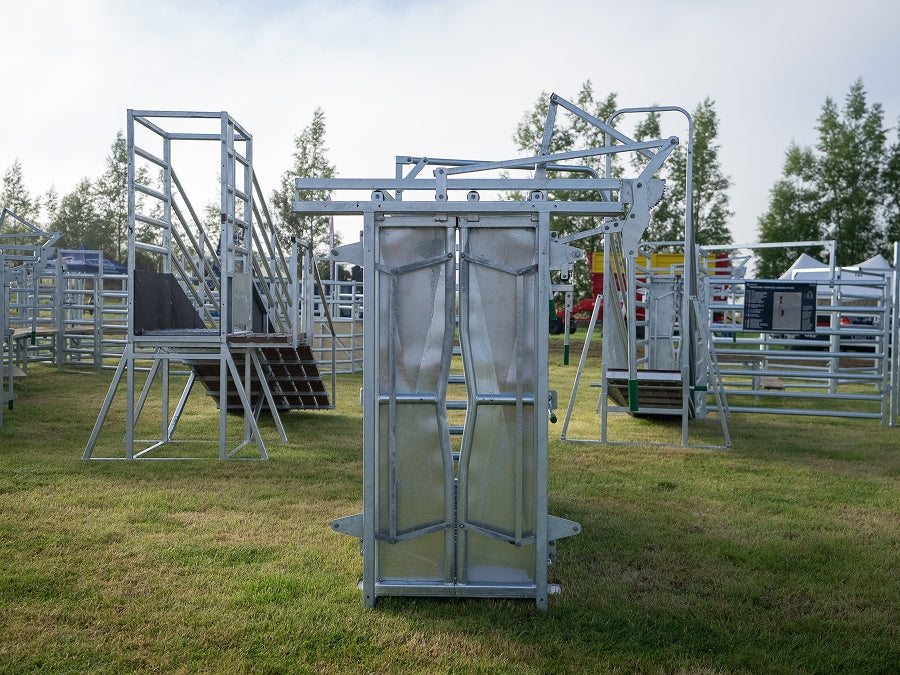

Up front, the diamond-shaped neck yoke helps reduce excessive head movement once cattle are secured, making handling calmer and safer for both you and your stock. We can also provide a 'neck yoke insert' for calves that require a lower profile, on request.

Each Phoenix Crush also comes fitted with an off-side drafting handle and is fully compatible with Gallagher and Tru-Test equipment, making it easy to integrate into your existing cattle handling setup. If you want a tough, practical vet Crush designed around real on-farm use, the Phoenix was built for it.

Phoenix Crush includes

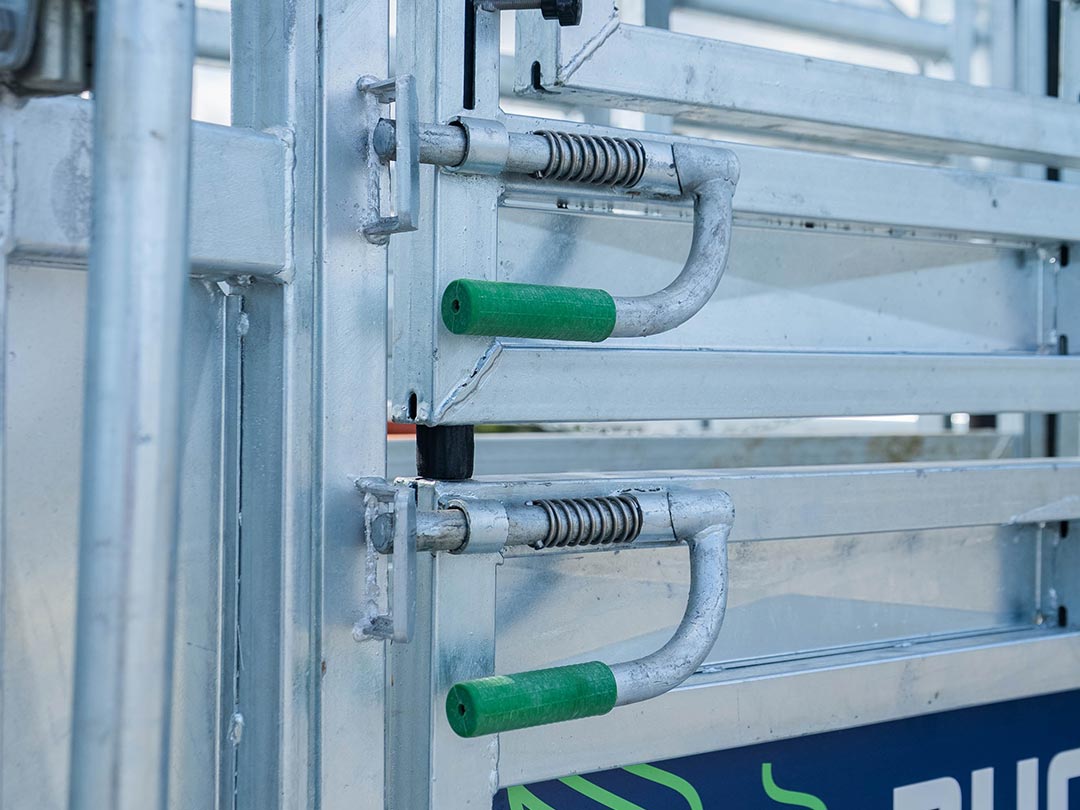

Every Onefarm Crush is fully hot dipped galvanised after welding, not before. That matters because it means the entire Crush, including welds, joins, and hard-to-reach areas, is coated inside and out for maximum protection against rust and corrosion. It’s built to handle harsh New Zealand conditions, from muddy yards to coastal properties, without the constant maintenance and repainting that comes with lower-grade finishes. The result is a tougher, longer-lasting Crush that stays stronger for longer.

The Phoenix Crush is designed with full vet access on both sides of the Crush, making veterinary work safer, faster, and far less stressful. Split side gates and top access points allow you to reach exactly where you need without putting yourself in awkward or dangerous positions around cattle. Whether you’re tagging, injecting, pregnancy testing, or treating animals, the layout gives you better control and safer handling throughout the job.

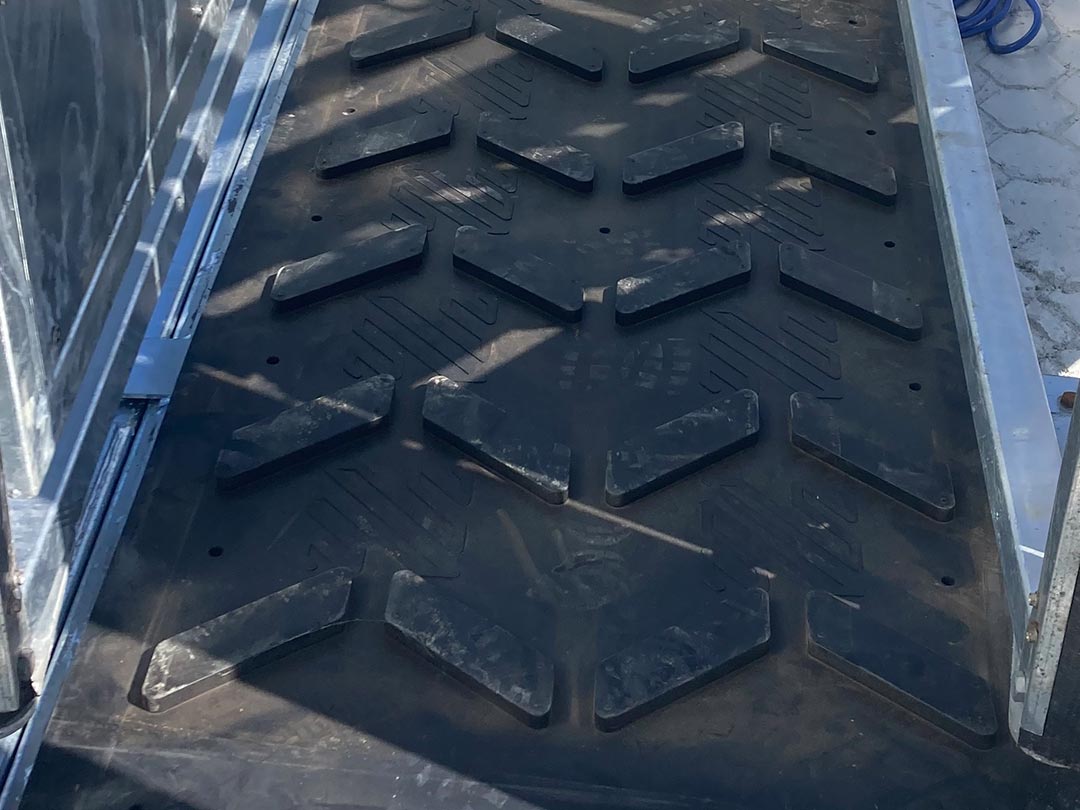

All Onefarm crushes come standard with heavy duty rubber matting bolted to the floor. It's the superior surface for cattle handling. Cleats grip hooves as cattle steam in, preventing slipping and keeping them settled. Softer underfoot than steel or fibreglass grating, and it kills the noise. A simple addition that makes a real difference.

Every Onefarm crush comes with an offside drafting kit included as standard. No additional cost, no optional extras. Draft cattle directly out of the offside of the crush without breaking stride. It's the kind of feature that should come with every crush, so we made sure it does.

10 Year Warranty

10 Year Warranty

On the hot-dip galvanised steel

Designed in NZ

Designed in NZ

With high quality steel in conjunction with our engineers and valued customer feedback

Free Delivery

Free Delivery

to your nearest Mainfreight

Commercial - Steel Warranty

Commercial - Steel Warranty

36-month structural warranty on all steel.

View full details

Your enquiry

Phoenix Crush

Fill out the form below and one of our Kiwi based experts will be in touch for a commitment-free chat about whether this yard is the right fit for you.

.
.
.
.
.
.
.
. Phoenix Crush

NOW $10,349 + GST

Was $11,499

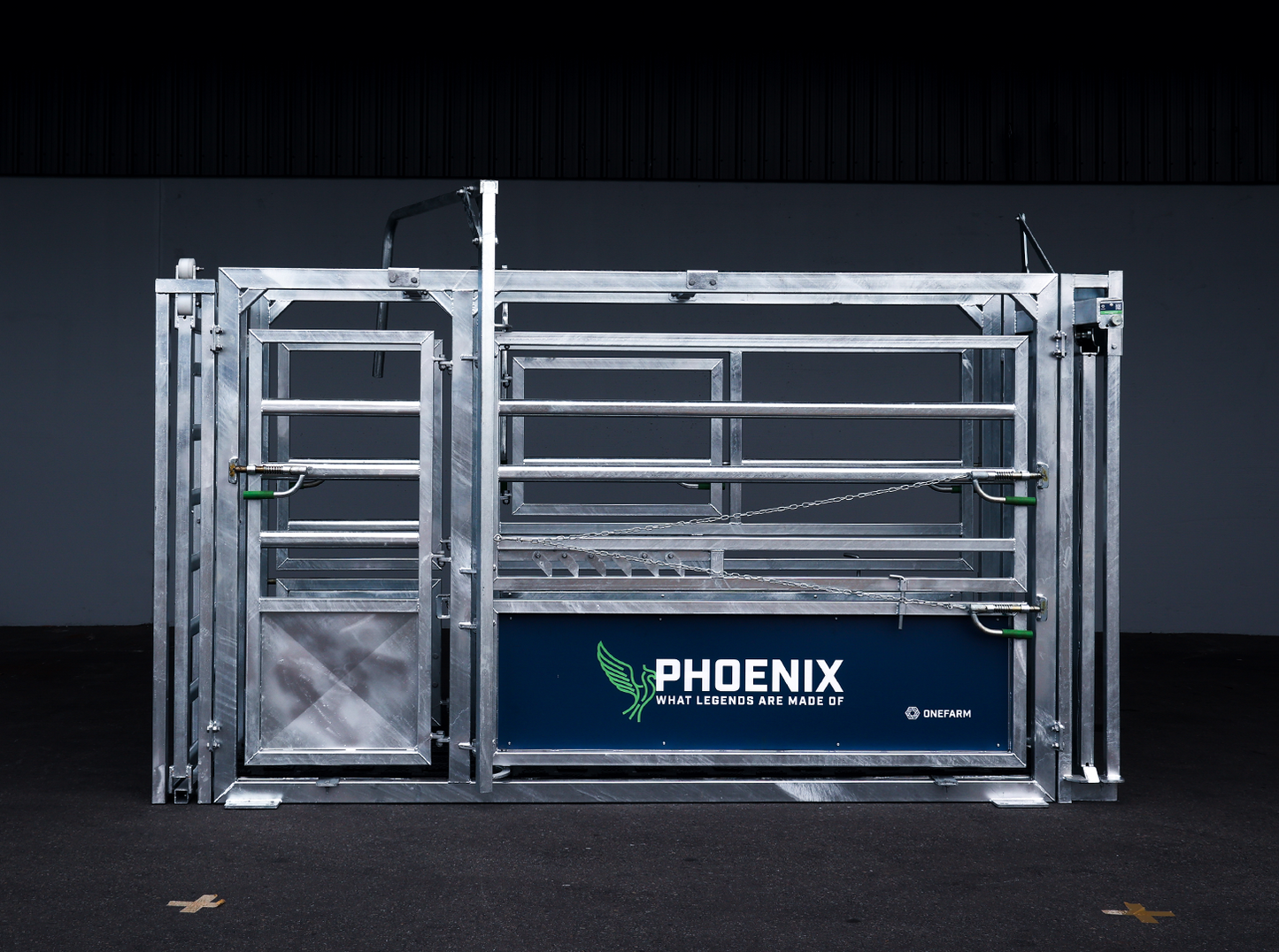

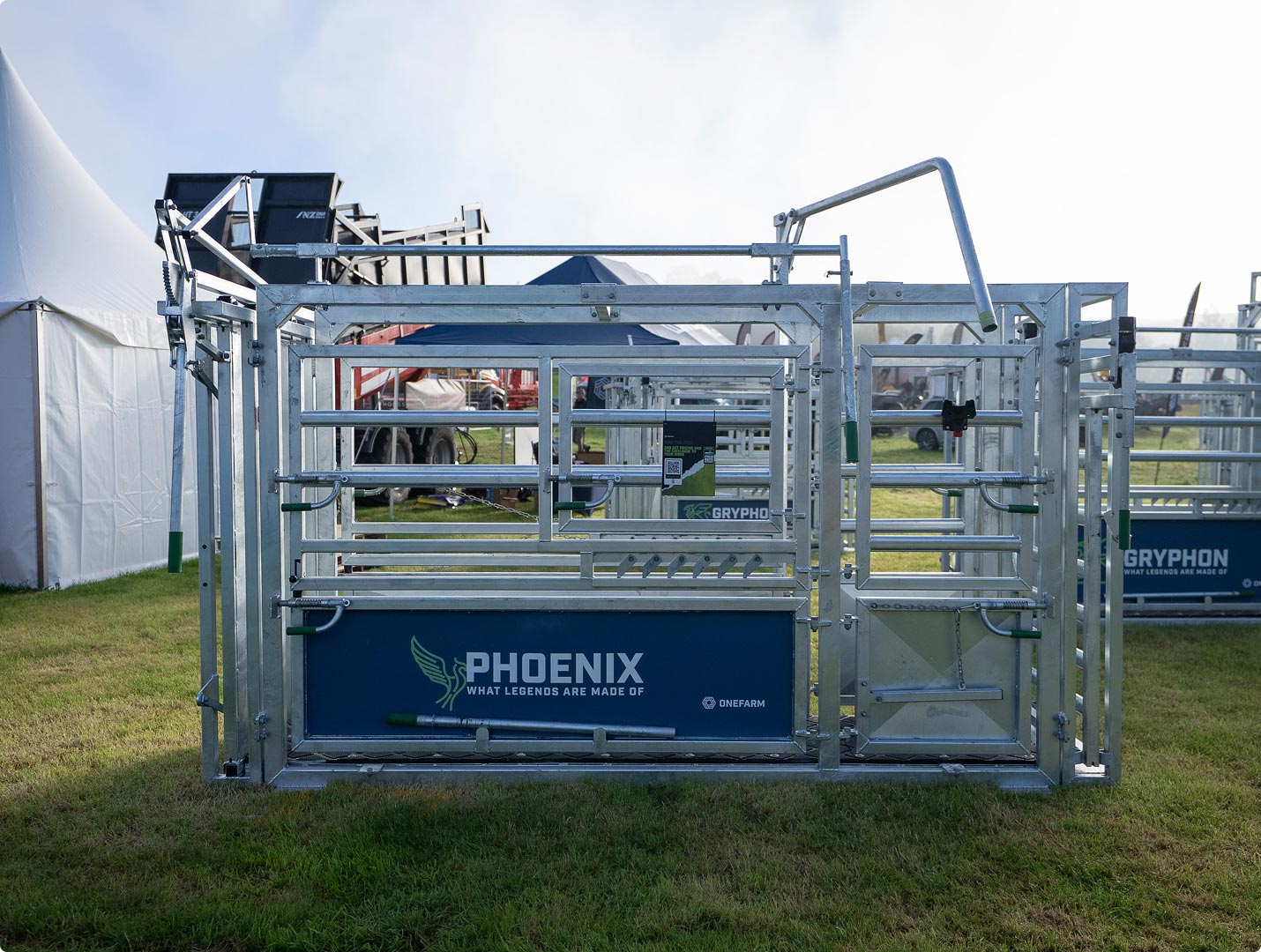

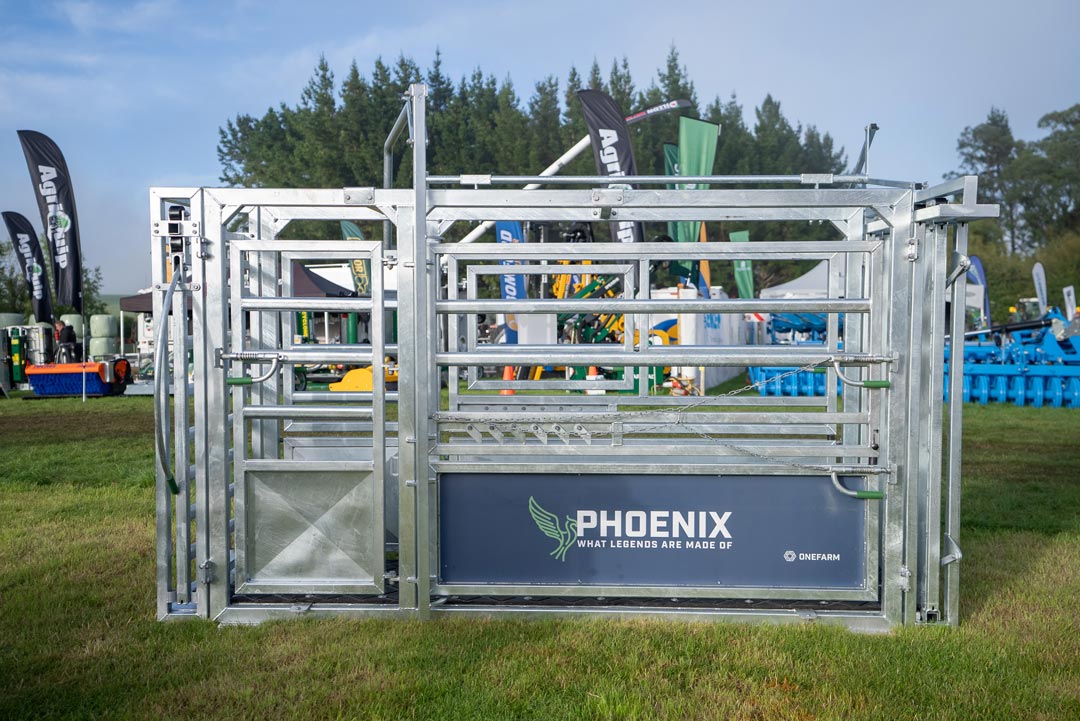

The Phoenix Crush is our 'Vet' model, available in both left and right-hand operation to accommodate all yards. Each Phoenix comes equipped with an Off-Side Drafting Handle.

Heavy Duty Ratchet

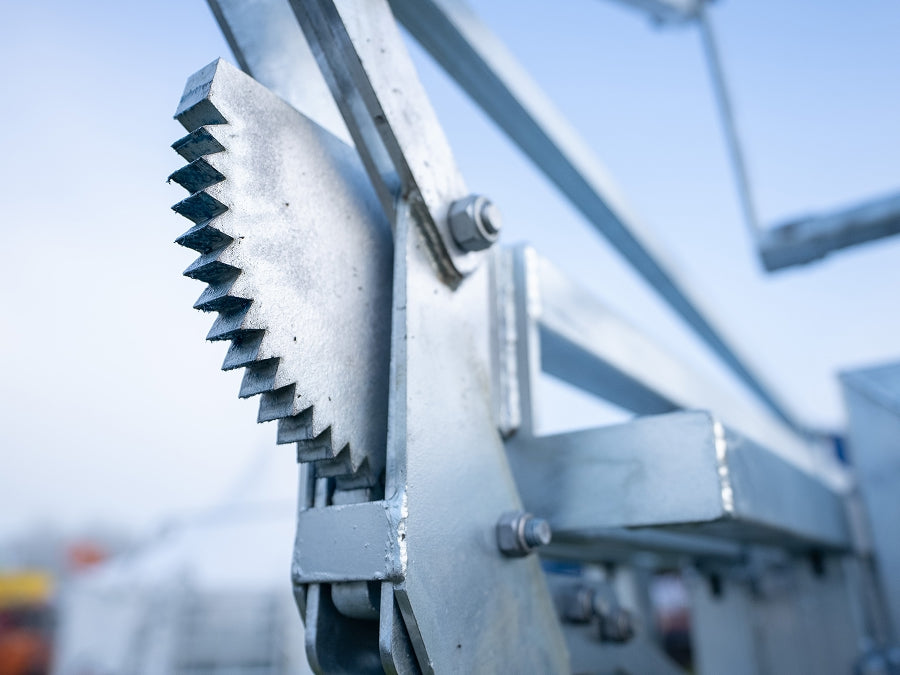

Head Bail Lock (20mm thick plate, 2x locking prongs for definte hold). We've tried several options - these are the most reliable

Gussets
Split Side Gates
Internal Top Half Gate
Additional Bracing
Additional Bracing
Rear Head Bail Operation

Out of line of sight of cattle

Top Vet Gate

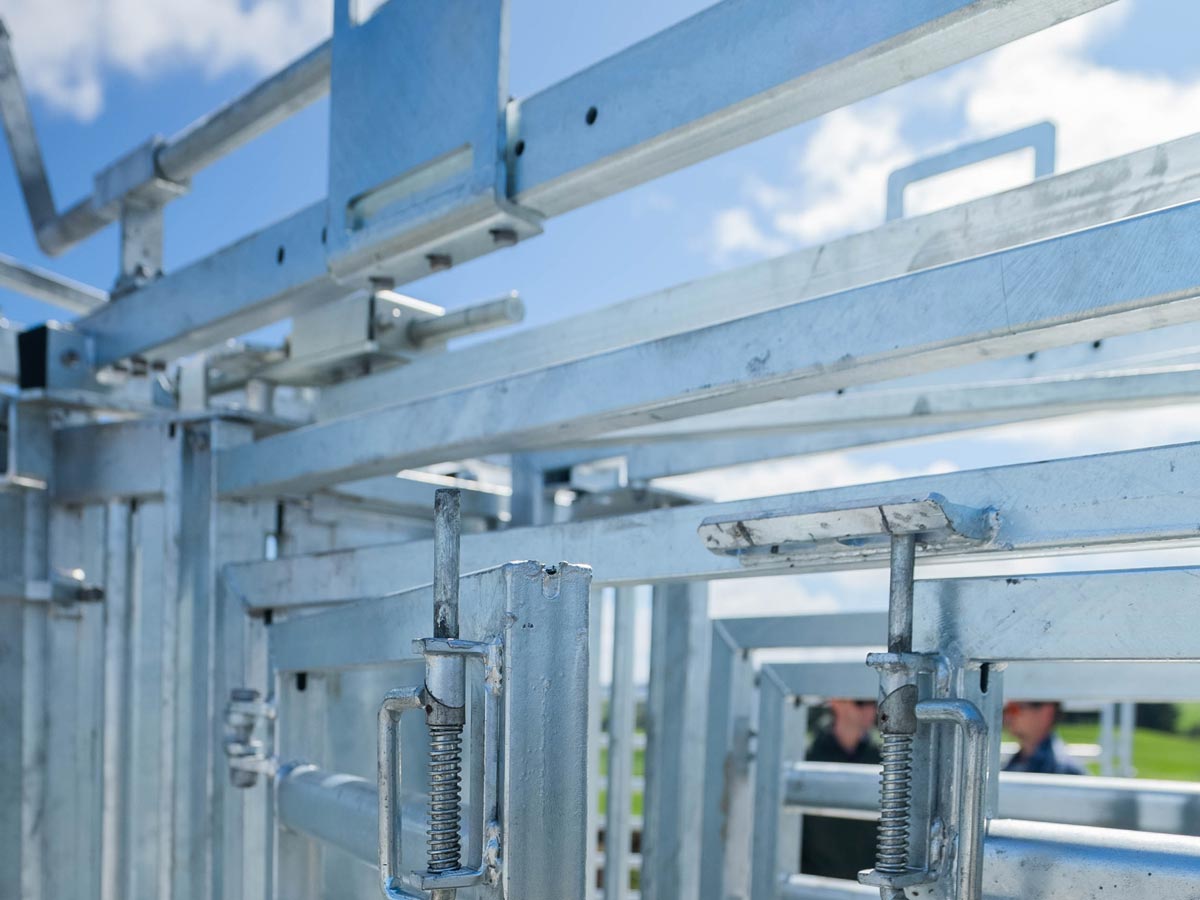

Smooth Sliding Gate
Bottom Vet Gate

Foot Controlled

Off-Side Drafting Handle
Heavy Duty Rubber Mat

Included with every Crush

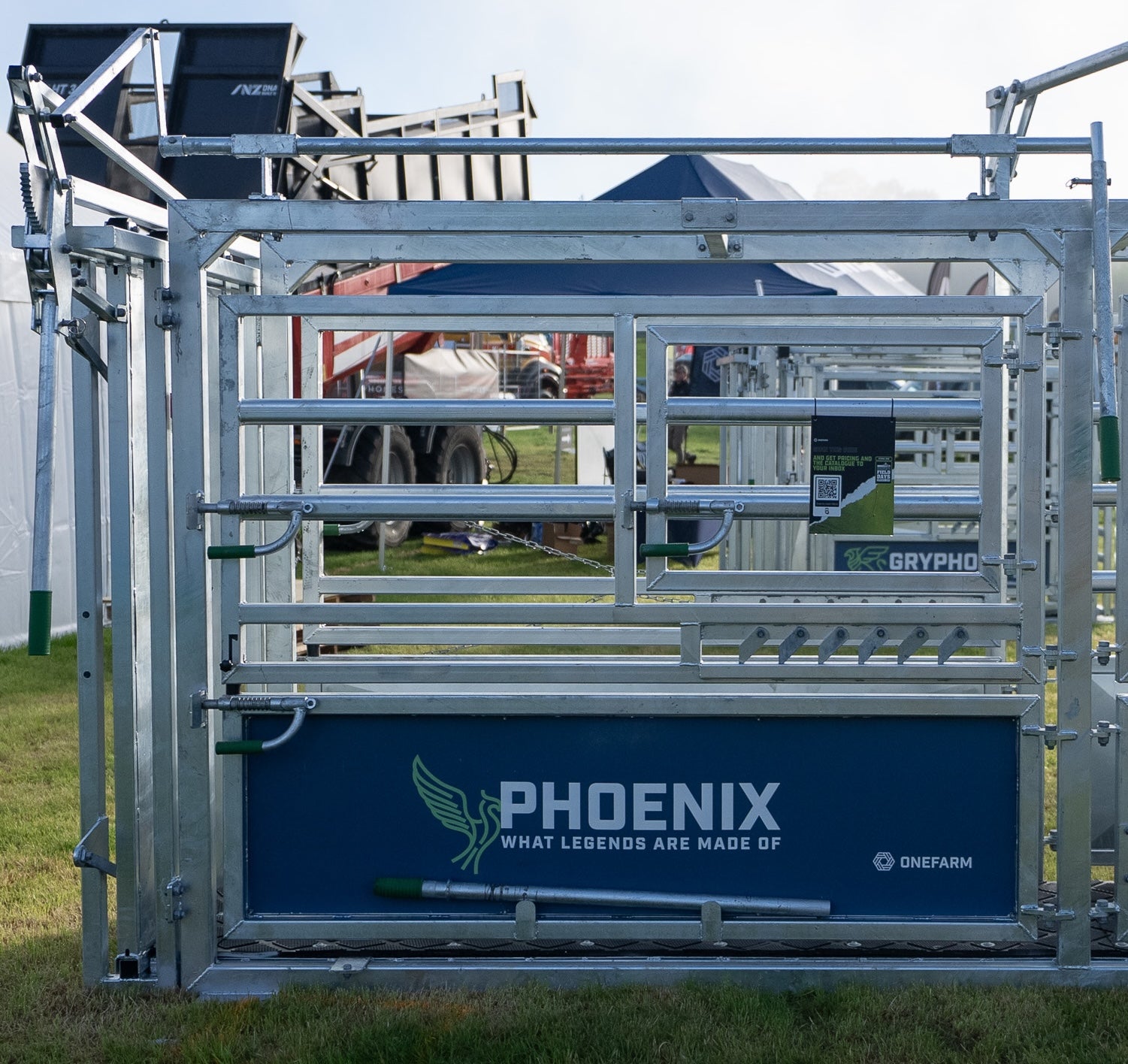

Anti-Backing Ratchet System
Crush Specs

The important specs for upgrading your yards with a Phoenix

From calves and cows through to heavy cattle and bulls, the Phoenix Crush is built to take on a wide range of day-to-day cattle handling jobs. With heavy-duty construction, smart operator-focused features, and full vet access, it’s designed to make cattle work safer, smoother, and more efficient on farms of all sizes.

External Length

3.625m

Internal Length

3.2m

External Width (on ground)

850mm

Internal Width

750mm

Head Bail (Opening)

The walk-through head bail design means the head bail opening maxes out at 750mm when fully open.

HDG to NZAS Standard

Every Yard is full hot dipped galvanized after welding to NZAS standards

Total Height

2.5m (to top of Off-Side Handle pivot)

Five reasons to choose a onefarm crush

01

Get accurate stock weights

One of the main benefits of using a crush for weighing vs. a weigh platform is the accurate weights you get out of a crush. Because you weigh the whole crush and the beast inside it, it doesn't matter if stock are leaning up against the side of the crush.

02

Safer for you and your stock

Smart features like the squeeze, anti-backing system, and diamond shaped neck yoke keeps cattle settled and reduce the risk of things going sideways.

03

More control, wherever you stand

We've tried all sorts of locking systems and we've come full circle back to the heavy duty ratchet lock. We use a dual pronged lock, 20mm steel plate and deep teeth to provide complete control when bailing a cattle beast. No slipping, no releasing. Pure strength using an tried and tested locking system.


04

Faster, more efficient cattle work

Better flow, easier access, and less mucking around means you get through jobs quicker and get back to everything else waiting on the list.

05

Built to last (and stay that way)

Hot dipped galvanising and tough components mean no constant repairs or maintenance. Just a crush that keeps doing its job year after year.

Phoenix Crush

Phoenix Crush Features

01

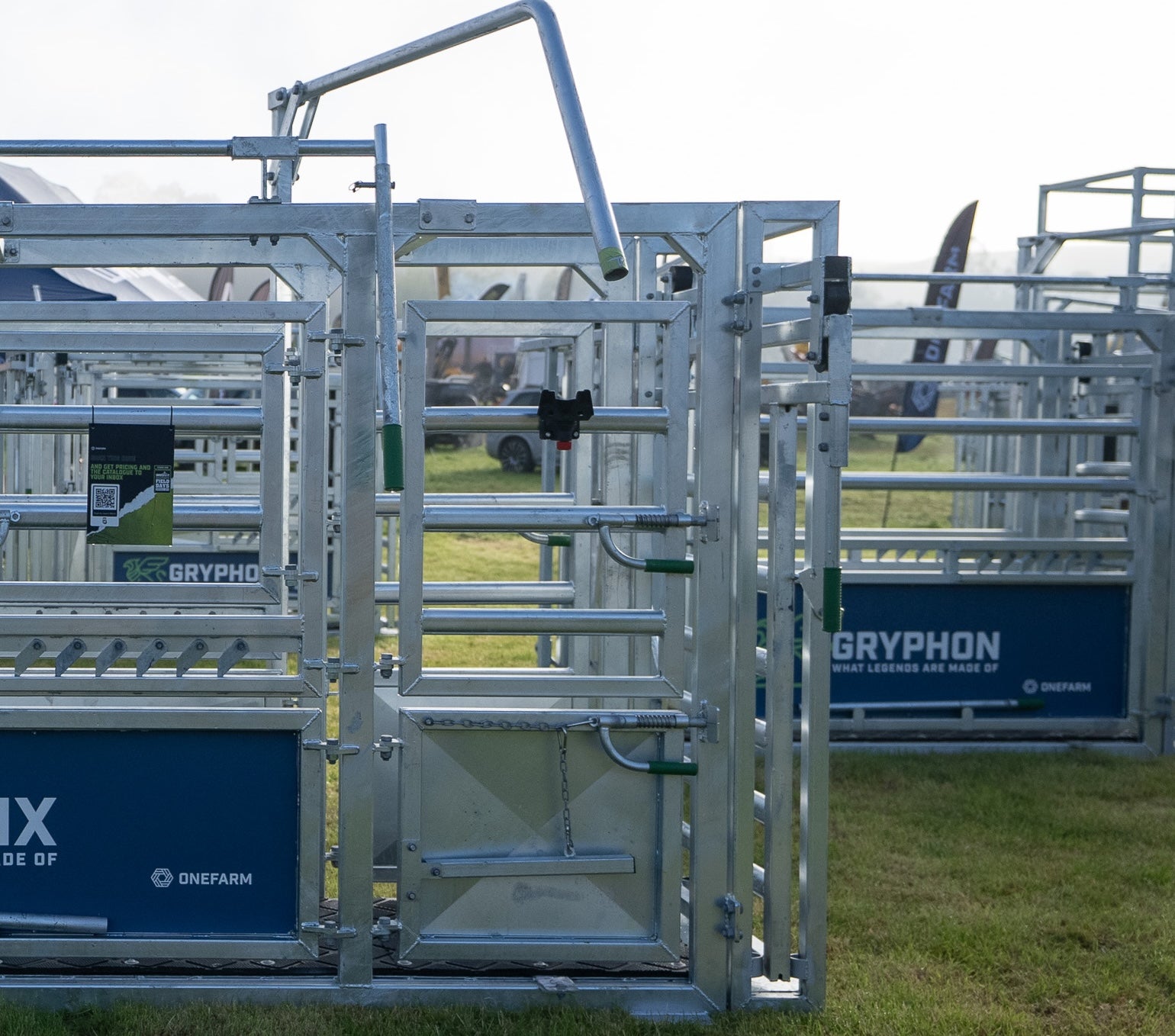

Vet Access

Making any vet related tasks a lot more efficient, such as calving cows.

02

Hot Dipped Galvanising

All Crushes are hot dipped galvanised after welding. 10-year warranty on all hot dipped galvanising.

03

80x50x5mm Frame Construction on all models

All crushes use a heavy duty 80x50x5mm frame construction.

04

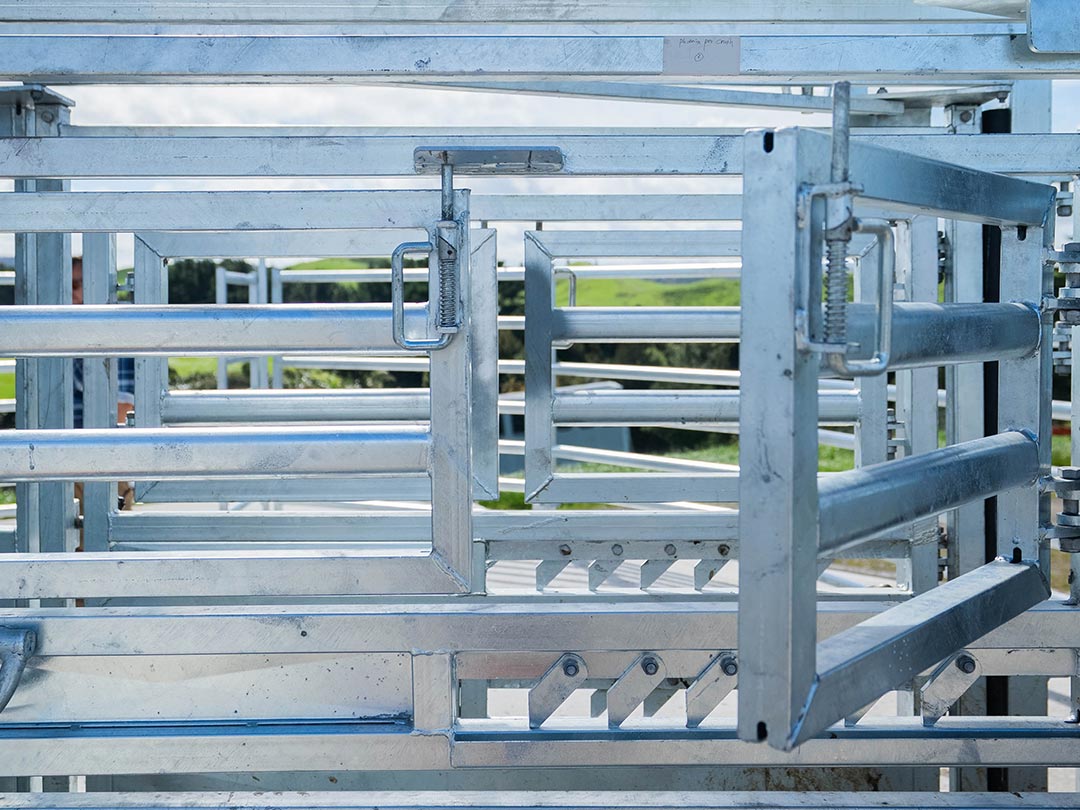

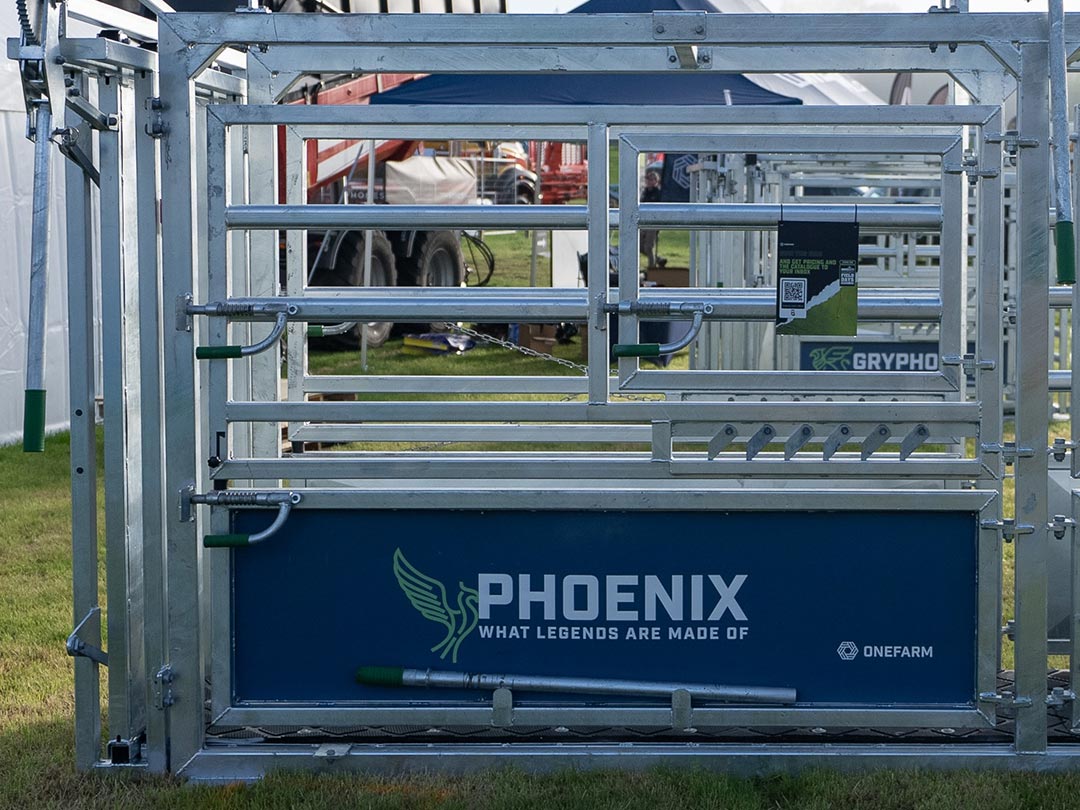

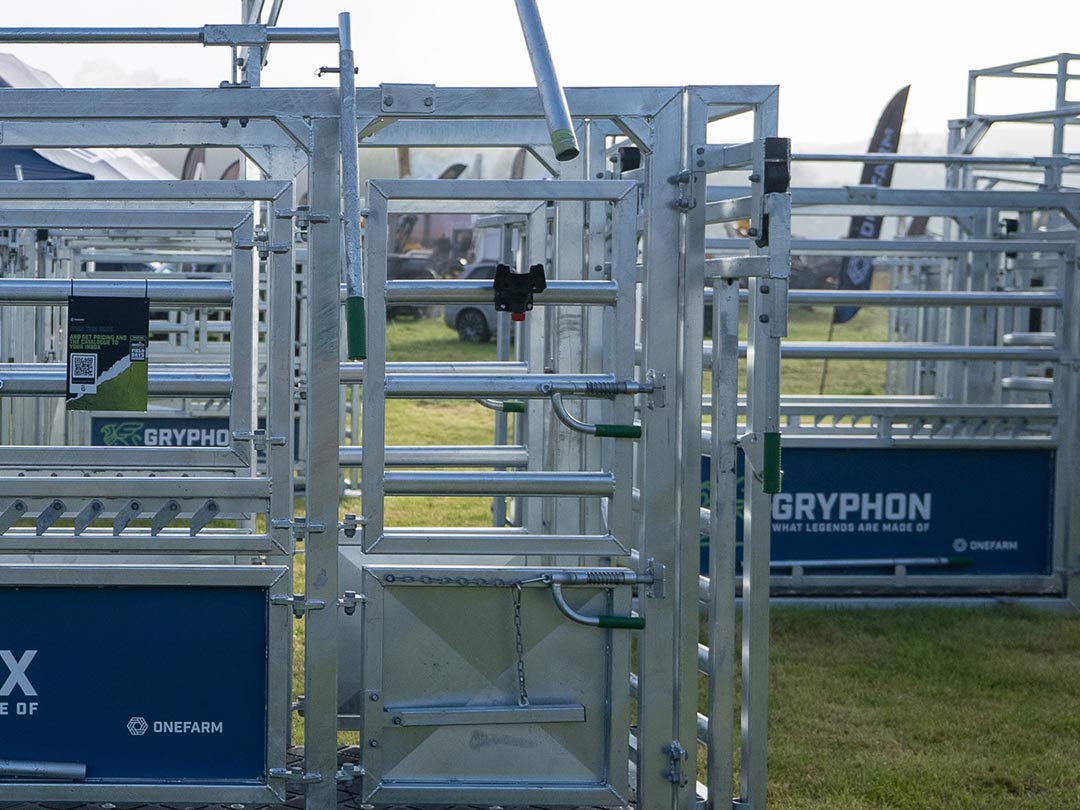

Split Side Gates (Both Sides)

Both side gates are two parts that can be operated as split individual parts or as full gates. Great or mothering on and the likes.

05

Anti-Backing Ratchet System

Use the anti-backing ratchet bar to prevent cattle from moving backwards once head bailed.

06

Heavy Duty Rubber Mat

Included with every Onefarm Crush is a heavy duty rubber mat bolted down to a steel framed floor. Softer and gripper under foot. They also reduce noise.

07

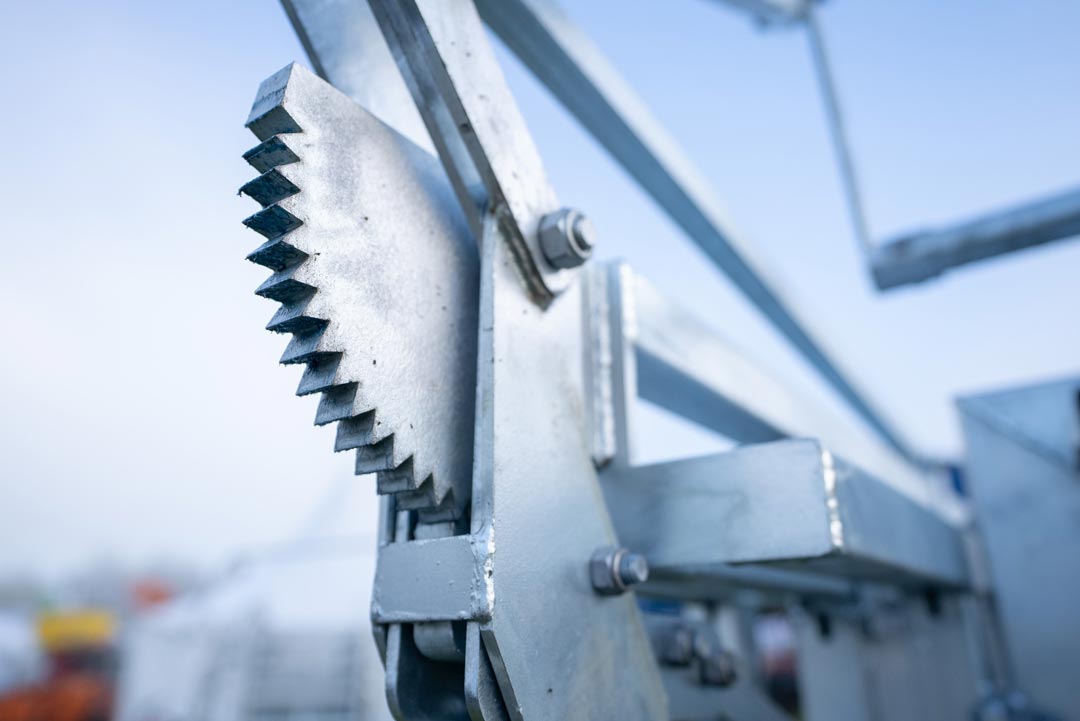

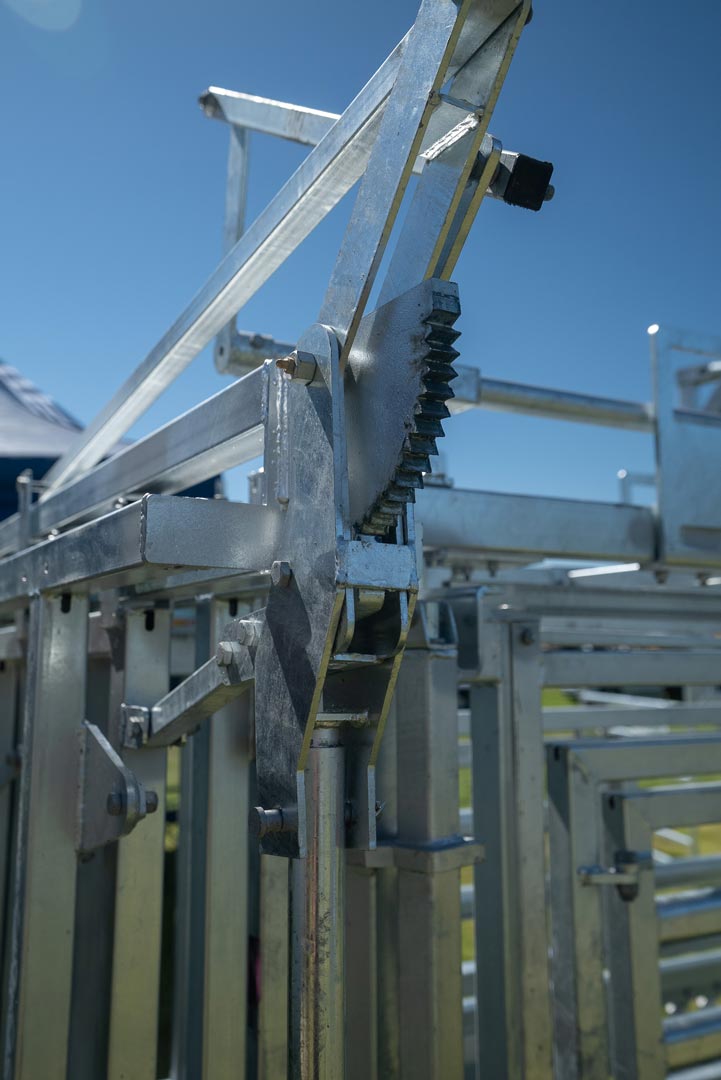

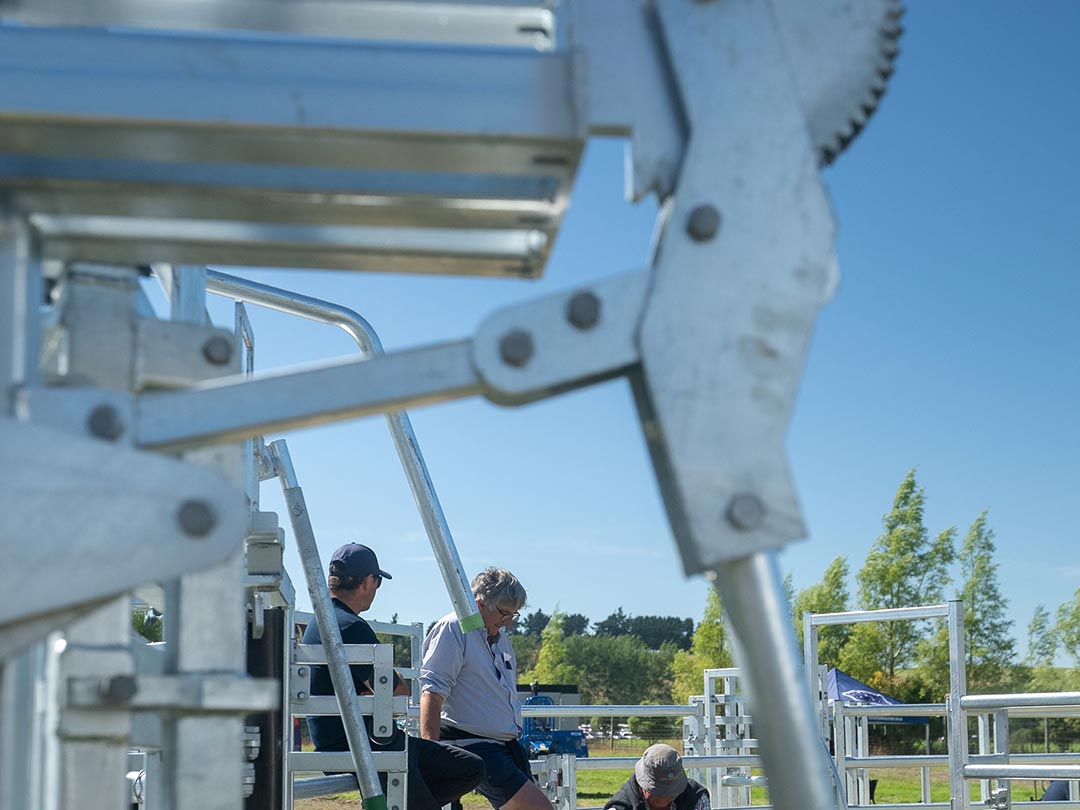

Heavy duty ratchet style head bail lock

We've tried numerous locking designs over the years and have come full circle back to the one design we know works, and we've beefed it up. 20mm thick railway iron strength steel with 2 locking prongs. Hold cattle safely and reliably.

08

Off-Side Drafting Handle

Set your system up to suit your workflow, making drafting smoother and reducing double-handling.

09

Front & Rear Head Bail Operation

Operate the head bail from the front or the rear of the crush. Front (for up close control), Rear (for operation out of the line of site - most common).

Frequently Asked Questions

Questions? We collected a few common ones below. Yours not there? Reach out and ask. The team is here to help.

  • 10-year hot-dipped galvanising warranty
  • 3-year structural warranty

All Onefarm Crushes are compatible with Gallagher and Tru-Test heavy duty load bars. These measure approximately 1,100mm in nominal length. For Tru-Test, the HD5T model is compatible with our Crush range.

Yes, all Crush models are available in left-hand and right-hand operation.

All Crushes are on a 7-8 week lead time.

50% deposit upon confirmation, with the 50% balance due prior to dispatch.

Yes. If you purchase a Crush individually, we deliver it to your nearest Mainfreight depot free of charge. If you purchase a Crush as part of a full set of yards, we deliver free to farm.

Yes, the Off-Side Drafting Handle Kit and Heavy Duty Rubber Mat are included with every Crush.

Yes, all Crushes are assembled and tested prior to leaving either of our warehouses in Hamilton or Christchurch.
